| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

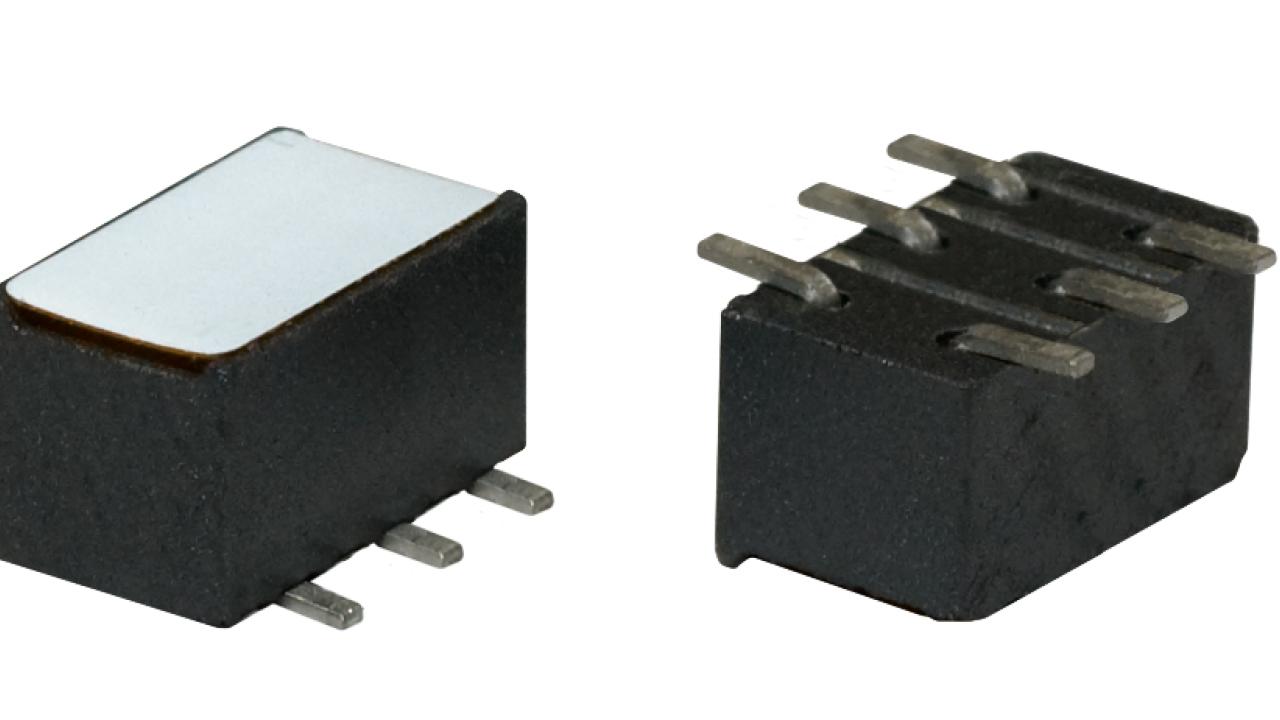

The CM4440Z111R-10 is a power line common mode choke from Laird Technologies designed for high current applications. It features 3 lines with an impedance of 110 Ω at 100 MHz, a maximum current rating of 20A, and a low DC resistance of 1 mΩ. The component is surface mountable in a Vertical, 6 Flat Lead package measuring 11.05mm x 10.03mm with a maximum height of 9.32mm. It operates over a temperature range of -40°C to 125°C, making it suitable for demanding environments. This choke is intended for common mode noise suppression in power supply and automotive circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.97 | $2.97 |
| 10+ | $2.50 | $2.50 |
| 25+ | $2.22 | $2.22 |
| 100+ | $2.11 | $2.11 |
| 375+ | $1.91 | $1.91 |
| 750+ | $1.87 | $1.87 |
| 2,250+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Vertical, 6 Flat Lead.
-40°C to 125°C.
It is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
20A maximum.
110 Ω.
3 lines.
1 mΩ maximum.
