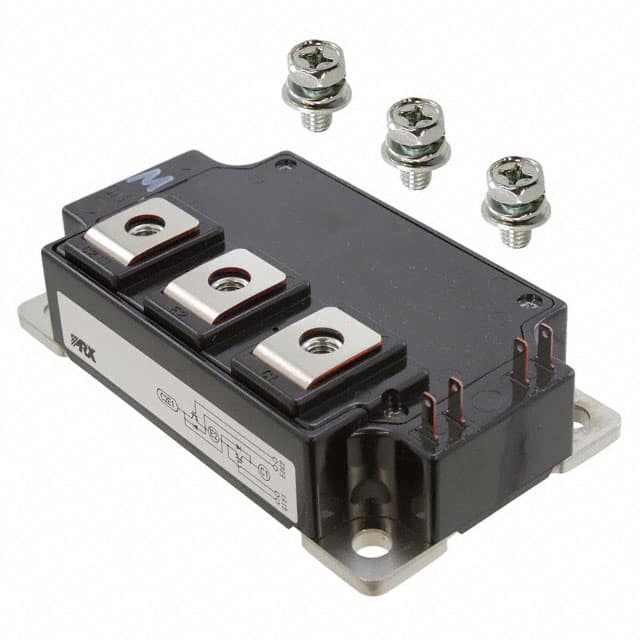

The CM400DU-12NFH is a high-power IGBT module manufactured by Powerex Inc. It features a Half Bridge configuration with a collector-emitter breakdown voltage of 600 V and a continuous collector current rating of 400 A.
Electrical characteristics include a maximum collector-emitter saturation voltage (Vce(on)) of 2.7 V at a gate voltage of 15 V and collector current of 400 A. The input capacitance (Cies) is 110 nF measured at Vce = 10 V. Maximum power dissipation is 960 W, supporting demanding power applications.
The module is chassis-mounted in a standard Module package and operates over a junction temperature range of -40°C to 150°C. The input type is standard, making it compatible with common gate drive circuits. This part does not include an NTC thermistor.
| Qty | Low | High |
|---|---|---|
| 10+ | $175.60 | $175.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600 V collector-emitter breakdown voltage.
Module package for chassis mount.
-40°C to 150°C (junction).
RoHS3 Compliant (unverified, low confidence).
400 A continuous.
960 W.
Maximum 2.7 V at Vge = 15 V, Ic = 400 A.
