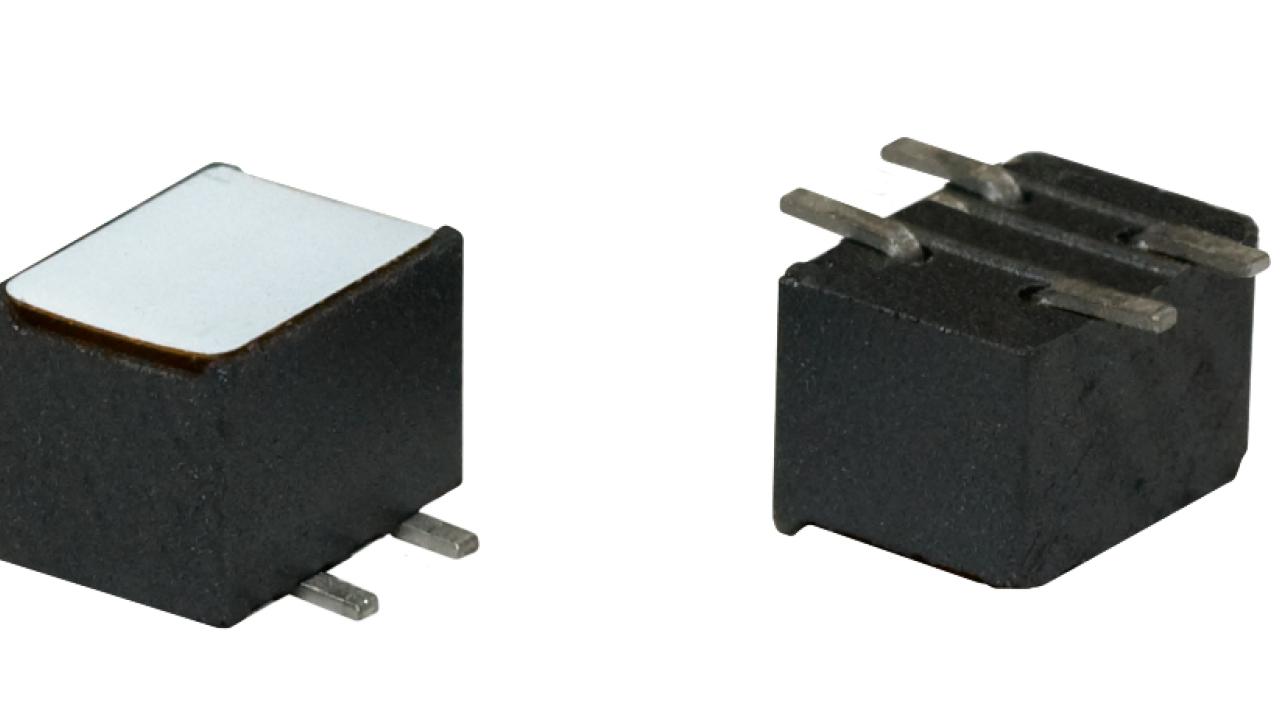

The STEWARD CM3440Z171R-10 is a common mode choke from the CM3440 series, designed for power line filtering in high-frequency applications. This component features a maximum rated current of 20A and a maximum rating voltage of 100VDC.
Electrical specifications include a low DCR of 0.001 Ohm maximum. The impedance characteristics are notable, with a typical impedance of 116 Ohm at 25 MHz, 170 Ohm at 100 MHz, 189 Ohm at 500 MHz, and peaking at 202 Ohm at 1 GHz. The peak impedance frequency is 1000 MHz.
This common mode choke operates within a temperature range of -40°C to 125°C. It supports both Surface Mount Technology (SMT) and Through-Hole Technology (THT) mounting types, offering flexibility in board design. The dimensions are 9.32mm in height/thickness, 8.51mm in length, and 10.00mm in width.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum rated current is 20 A.
The maximum DCR is 0.001 Ohm.
The operating temperature range is -40°C to +125°C.
The typical impedance at 1 GHz is 202 Ohm.
The peak impedance frequency is 1000 MHz.
The maximum voltage rating is 100 VDC.
Length 8.51 mm, width 10 mm, height 9.32 mm.
