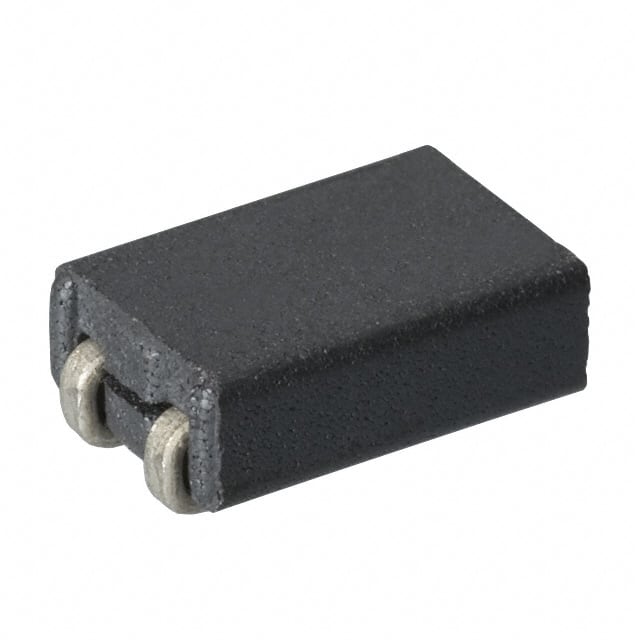

CM3421Y600R-10 This is a surface mount common mode choke rated for 15A with 60 Ohm impedance at 100MHz, designed for power line filtering.
Mfr Part #:

CM3421Y600R-10

Available from 6 distributors
Mfr Name: Laird Technologies
Laird Technologies
This is a surface mount common mode choke rated for 15A with 60 Ohm impedance at 100MHz, designed for power line filtering.
✓ Total Stock: 13,189 pcs
$ Price Range: $0.40 - $0.72

CM3421Y600R-10 Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CM3421Y600R-10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

CM3421Y600R-10 Description

Short technical summary and product information.

The CM3421Y600R-10 is a common mode choke from Laird Technologies designed for power line filtering applications. It features a 15A maximum current rating and 60 Ohm impedance at 100MHz, with a maximum DC resistance of 0.75mOhm.



This component supports 2 lines and is rated for up to 140V. It operates over a temperature range of -40°C to 125°C, making it suitable for a variety of environments. The surface mount package is 3822 (8531 Metric) with 4 leads, measuring 9.55mm x 5.60mm with a maximum height of 3.80mm.



Common mode chokes are used to suppress electromagnetic interference (EMI) in power lines, and this model's high current rating and low DCR make it appropriate for high-power applications.

CM3421Y600R-10 Quick Information

Product Type: Common Mode Choke
Series: CM3421
Canonical Name: Common Mode Choke, 15A, 60 Ohm @ 100MHz, 2 Lines, Surface Mount
Subcategory: Power Line Common Mode Choke

CM3421Y600R-10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CM3421Y600R-10 Estimated Pricing

Qty Low High
1+ $0.72 $0.72
10+ $0.59 $0.59
25+ $0.52 $0.52
100+ $0.49 $0.49
250+ $0.45 $0.45
500+ $0.43 $0.43
1,000+ $0.40 $0.40
2,000+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

CM3421Y600R-10 Features

  • 15A maximum current rating.
  • 60 Ohm impedance at 100MHz.
  • Surface mount 3822 package.
  • Wide operating temperature -40°C to 125°C.
  • Low DCR of 0.75mOhm.

CM3421Y600R-10 Applications

  • Power line common mode noise filtering.
  • High-current power supply circuits.
  • EMI suppression in automotive systems.
  • Industrial power supply filtering.

CM3421Y600R-10 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of this choke?

140V

What is the package/case size?

3822 (8531 Metric) with 4 leads

What is the operating temperature range?

-40°C to 125°C

Is this component RoHS compliant?

Yes, RoHS3 compliant (unverified)

What is the maximum current rating?

15A

What is the impedance at 100MHz?

60 Ohm

What is the DC resistance?

0.75mOhm maximum
