| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Type | |
| Width |

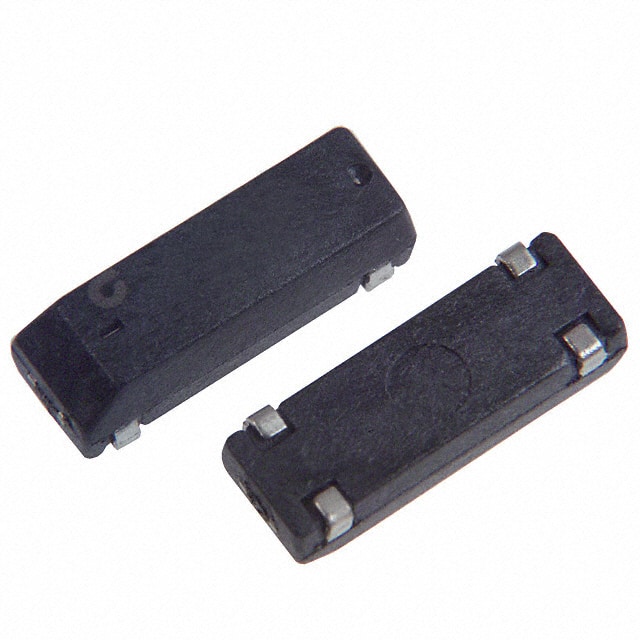

The CM309S30.000MABJTR is a 30 MHz fundamental mode crystal from Citizen Finedevice Co Ltd, designed for surface-mount applications. It features a load capacitance of 18pF, equivalent series resistance (ESR) of 50Ω, frequency tolerance of ±30ppm, and frequency stability of ±50ppm over the operating temperature range of -10°C to 60°C.
This crystal is housed in a 4-SOJ package with a 9.40mm pitch, measuring 12.40mm x 4.40mm x 3.70mm. The surface-mount design enables automated assembly and is suitable for compact electronic devices.
Typical applications include clock generation in microcontrollers, timing circuits in consumer electronics, and reference oscillators in communication equipment. The fundamental operating mode ensures reliable performance at the specified frequency without overtone complications.
30 MHz.
18 pF.
-10°C to 60°C.
4-SOJ, 9.40mm pitch, surface mount.
Yes, RoHS3 compliant.
50 Ω maximum.
±50 ppm.
