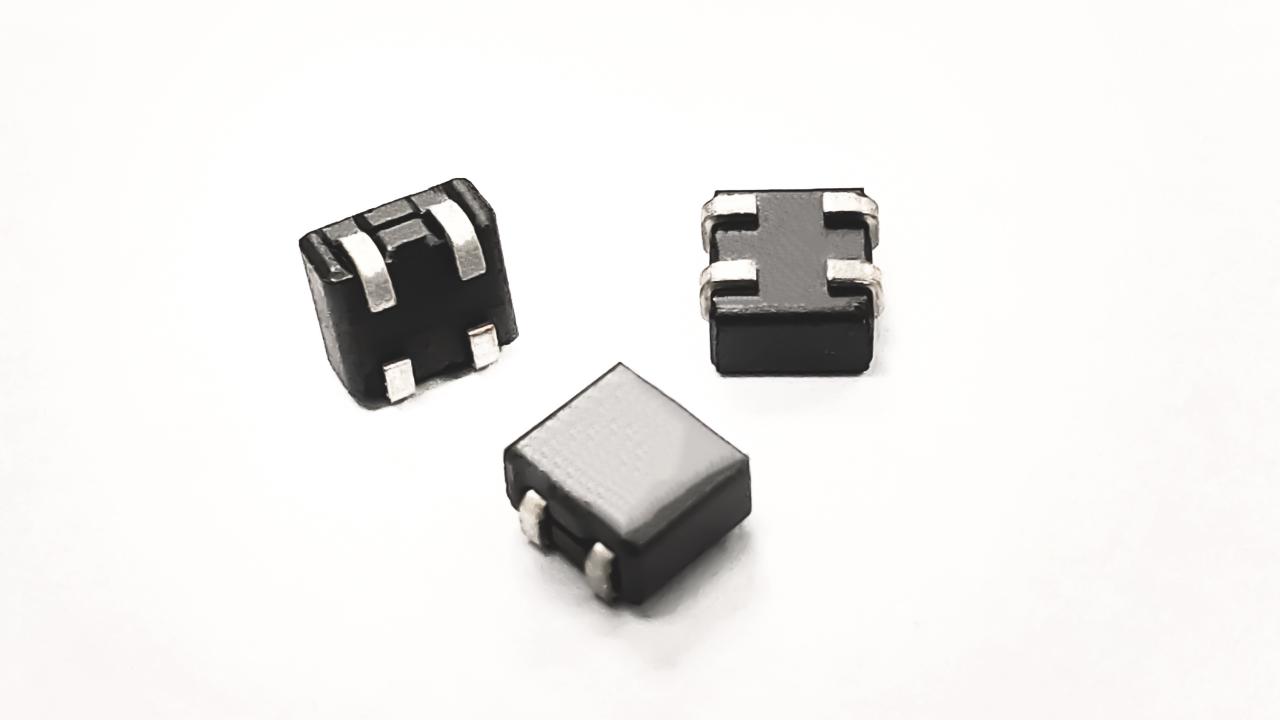

CM2021Y330R-10 Common mode choke, 15A rated current, 33Ω impedance at 100MHz, surface mount, 2322 package.
Mfr Part #:

CM2021Y330R-10

Available from 4 distributors
Mfr Name: Laird Technologies
Laird Technologies
Common mode choke, 15A rated current, 33Ω impedance at 100MHz, surface mount, 2322 package.
✓ Total Stock: 1,903 pcs
$ Price Range: $0.36 - $0.69

CM2021Y330R-10 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CM2021Y330R-10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

CM2021Y330R-10 Description

Short technical summary and product information.

The CM2021Y330R-10 is a two-line common mode choke from Laird Technologies designed for power line applications. It provides 33Ω typical impedance at 100MHz for effective common mode noise suppression. With a maximum current rating of 15A and an ultra-low DC resistance of 0.75mOhm, it minimizes power loss in high-current circuits.



This component is housed in a compact 2322 (5956 metric) surface mount package with 4 leads, enabling automated assembly. It is rated for a maximum voltage of 280V and operates reliably across a temperature range of -40°C to 125°C.



Typical applications include power line filtering, DC/DC converter input/output filtering, and EMI suppression in automotive or industrial systems where high current handling and low insertion loss are critical.

CM2021Y330R-10 Quick Information

Product Type: Common Mode Choke
Series: CM2021
Canonical Name: CM2021Y330R-10 Common Mode Choke
Subcategory: Power Line

CM2021Y330R-10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

CM2021Y330R-10 Estimated Pricing

Qty Low High
1+ $0.69 $0.69
10+ $0.57 $0.57
25+ $0.50 $0.50
100+ $0.47 $0.47
250+ $0.44 $0.44
500+ $0.41 $0.41
1,000+ $0.39 $0.39
2,000+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

CM2021Y330R-10 Features

  • Two-line common mode choke for power lines.
  • Rated for 15A continuous current.
  • Offers 33Ω impedance at 100 MHz.
  • Surface mount package 2322 (5956 metric).
  • Low DC resistance of 0.75 milliohm.

CM2021Y330R-10 Applications

  • Used in power line common mode filtering.
  • Suitable for high current DC/DC converters.
  • Ideal for EMI suppression in automotive systems.

CM2021Y330R-10 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of CM2021Y330R-10?

280V maximum.

What is the package size of CM2021Y330R-10?

2322 (5956 Metric), 4 lead surface mount.

What is the operating temperature range?

-40°C to 125°C.

Is the CM2021Y330R-10 RoHS compliant?

RoHS3 Compliant according to data, though unverified.

What is the impedance of CM2021Y330R-10?

33Ω at 100 MHz.

What is the maximum current rating?

15A.

How many lines does it filter?

2 lines.
