| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Type | |
| Width |

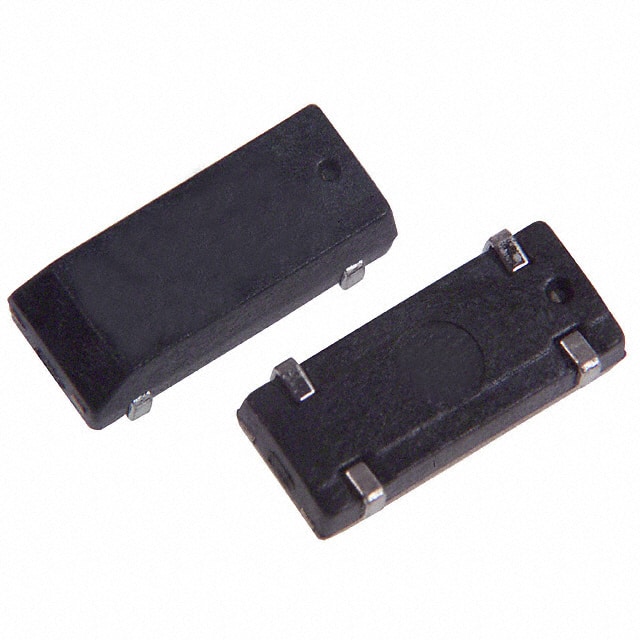

The CM200S-32.768KDZF-UT is a surface mount tuning fork crystal from Citizen Finedevice. It operates at a nominal frequency of 32.768 kHz with a frequency tolerance of ±20 ppm and a load capacitance of 12.5 pF. The crystal is designed for fundamental mode operation and features a maximum equivalent series resistance of 50 kΩ.
The component is supplied in a compact 4-SOJ package with a 5.50 mm pitch, measuring 7.90 mm by 3.70 mm with a height of 2.50 mm. Its surface mount configuration makes it suitable for automated assembly and space-constrained PCB designs. The operating temperature range is -40°C to +85°C.
As a tuning fork crystal, this part is commonly used in low-frequency timing applications such as real-time clocks, and battery-operated devices where low power consumption is critical. The fundamental operating mode simplifies oscillator circuit design.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4-SOJ with 5.50mm pitch, surface mount.
-40°C to +85°C.
It is specified as RoHS3 compliant.
32.768 kHz.
±20 ppm.
12.5 pF.
50 kΩ.
