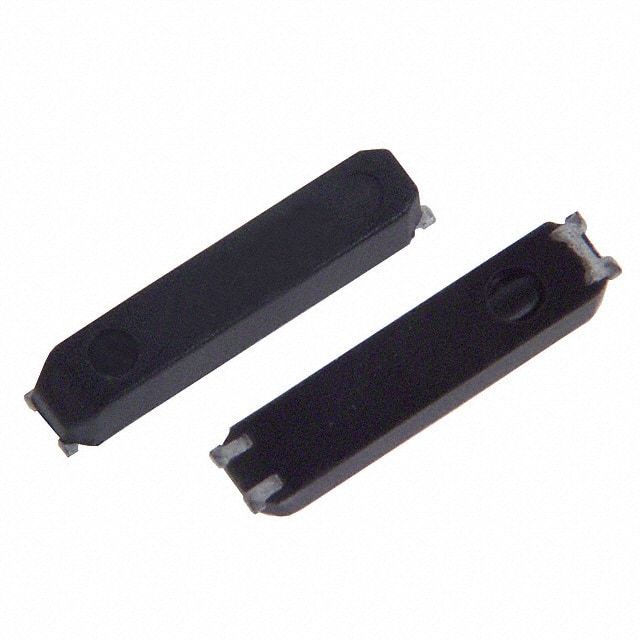

CM13032768DZFT CM13032768DZFT is a 32.768 kHz tuning fork crystal from Citizen Finedevice. It features ±20ppm frequency tolerance, 12.5pF load capacitance, and operates from -40°C to +85°C.
Mfr Part #:

CM13032768DZFT

Available from 1 distributors
Mfr Name: Citizen Finedevice
Citizen Finedevice
CM13032768DZFT is a 32.768 kHz tuning fork crystal from Citizen Finedevice. It features ±20ppm frequency tolerance, 12.5pF load capacitance, and operates from -40°C to +85°C.
✓ Total Stock: 10 pcs
$ Price Range: $0.73 - $0.80

CM13032768DZFT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CM13032768DZFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Tolerance
Height
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Storage Temperature
Tape & Reel
Temperature Coefficient
Type
Width
View Similar Products (0)

CM13032768DZFT Description

Short technical summary and product information.

The CM13032768DZFT is a 32.768 kHz tuning fork crystal manufactured by Citizen Finedevice. It is designed for surface mount applications and comes in a compact 4-SMD, flat lead package measuring 6.70mm x 1.40mm x 1.40mm. This crystal operates in fundamental mode and has a maximum ESR of 65 kΩ at 25°C. The frequency tolerance is ±20ppm at 25°C, with a load capacitance of 12.5pF. It is suitable for timekeeping and real-time clock circuits in small mobile devices and consumer products. The operating temperature range is -40°C to +85°C, with a storage range of -55°C to +125°C. The part is RoHS compliant and REACH unaffected, though these compliance claims are unverified. It is supplied in tape and reel packaging with 3000 pieces per reel.

CM13032768DZFT Quick Information

Product Type: Tuning Fork Crystal
Series: CM130
Canonical Name: Citizen Finedevice CM13032768DZFT 32.768 kHz Crystal, ±20ppm, 12.5pF Load Capacitance, SMD
Subcategory: Tuning Fork Crystals

CM13032768DZFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CM13032768DZFT Estimated Pricing

Qty Low High
1+ $0.80 $0.80
25+ $0.78 $0.78
100+ $0.73 $0.73
3,000+ $0.73 $0.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

CM13032768DZFT Features

  • 32.768 kHz tuning fork crystal.
  • ±20ppm frequency tolerance at 25°C.
  • 12.5pF load capacitance.
  • Surface mount 4-SMD package.
  • Operating temperature -40°C to +85°C.

CM13032768DZFT Applications

  • Used in real-time clock circuits.
  • Ideal for small mobile devices.
  • Suitable for consumer electronics timing.
  • Timekeeping in battery-powered devices.

CM13032768DZFT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of the CM13032768DZFT?

32.768 kHz.

What is the frequency tolerance?

±20ppm at 25°C.

What is the load capacitance?

12.5pF.

What is the operating temperature range?

-40°C to +85°C.

What is the package type?

4-SMD, Flat Lead, 3 Leads.

Is the CM13032768DZFT RoHS compliant?

RoHS3 Compliant (unverified).

What is the ESR?

65 kΩ maximum at 25°C.
