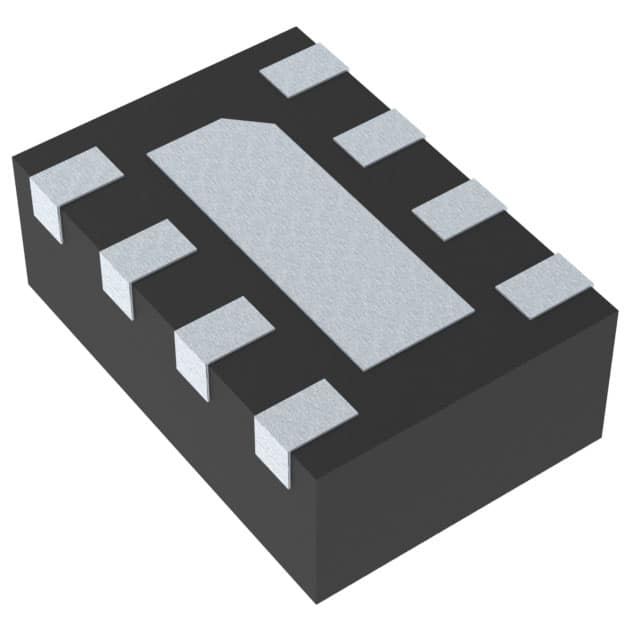

CM1241-04D4 The CM1241-04D4 is a 4-channel low capacitance ESD protection array from On Semiconductor. It provides ±8 kV contact discharge protection on three channels and ±15 kV on the fourth channel.
Mfr Part #:

CM1241-04D4

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The CM1241-04D4 is a 4-channel low capacitance ESD protection array from On Semiconductor. It provides ±8 kV contact discharge protection on three channels and ±15 kV on the fourth channel.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.53

CM1241-04D4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 1148+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CM1241-04D4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Current
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power Line Protection
Storage Temperature
Supplier Device Package
Tape & Reel
Type
Unidirectional Channels
Voltage
View Similar Products (0)

CM1241-04D4 Description

Short technical summary and product information.

The CM1241-04D4 is a 4-channel low capacitance dual-voltage ESD protection array designed by On Semiconductor. It offers ESD protection to IEC 61000-4-2 Level 4, with ±8 kV contact discharge on pins 1-3 and ±15 kV on pin 4. The device features a breakdown voltage range of 6.8V to 9.2V (at 10mA, 25°C) and a typical clamping voltage of 9.64V. It can handle peak pulse currents of 1A (8/20µs).



The array integrates three low-voltage ESD channels and one high-voltage channel, making it suitable for protecting multiple data lines and power rails in portable electronics. It requires no external bypass capacitors and exhibits minimal capacitance change with temperature and voltage.



The CM1241-04D4 is housed in an 8-WFDFN exposed pad package (8-WDFN 1.7x1.35) and is surface mountable. It is Pb-Free and RoHS compliant, supplied in tape and reel packaging with a standard quantity of 3000 pieces per reel.

CM1241-04D4 Quick Information

Product Type: TVS Diode Array
Series: CM1241
Canonical Name: CM1241-04D4 4-Channel Low Capacitance Dual-Voltage ESD Protection Array
Subcategory: Steering (Rail to Rail)

CM1241-04D4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

CM1241-04D4 Estimated Pricing

Qty Low High
568+ $0.53 $0.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

CM1241-04D4 Features

  • 4 unidirectional ESD protection channels.
  • Provides ±8 kV contact discharge on pins 1-3.
  • Provides ±15 kV contact discharge on pin 4.
  • Low capacitance for high-speed data lines.
  • Pb-Free and RoHS compliant.

CM1241-04D4 Applications

  • General purpose ESD protection.
  • Ideal for portable electronics.
  • Protects high-speed data interfaces.
  • Suitable for rail-to-rail steering applications.

CM1241-04D4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the breakdown voltage of the CM1241-04D4?

The breakdown voltage ranges from 6.8V minimum to 9.2V maximum, with a typical value of 8.2V at 10mA and 25°C.

What is the clamping voltage of the CM1241-04D4?

The typical clamping voltage is 9.64V.

What is the peak pulse current rating?

The peak pulse current is 1A for an 8/20µs waveform.

What package is the CM1241-04D4 available in?

It is available in an 8-WFDFN exposed pad package (8-WDFN 1.7x1.35).

What ESD protection level does the CM1241-04D4 provide?

It provides ±8 kV contact discharge on pins 1-3 and ±15 kV on pin 4, meeting IEC 61000-4-2 Level 4.

How many channels does the CM1241-04D4 have?

It has 4 unidirectional channels.

Is the CM1241-04D4 RoHS compliant?

Yes, it is RoHS3 compliant and Pb-Free as stated in the datasheet.
