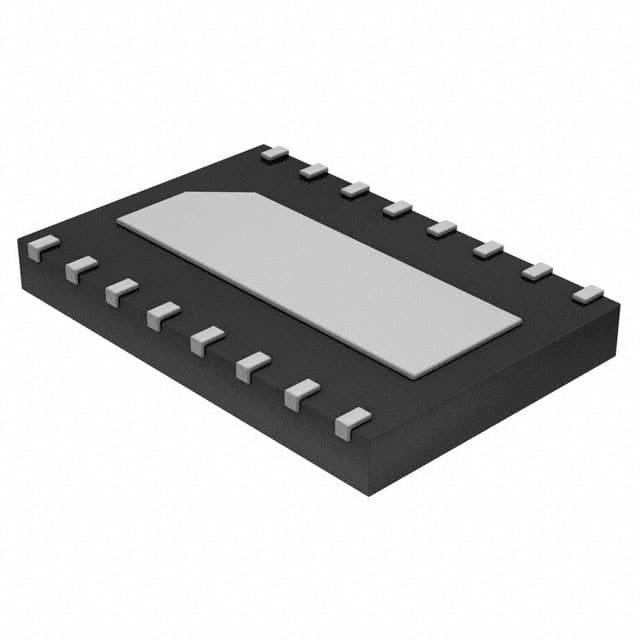

The CM1233-08DE is a steering (rail-to-rail) TVS diode array designed for ESD protection on high-speed data lines. It features 4 unidirectional channels with a reverse standoff voltage of 5.5V and a typical clamping voltage of 10V. The device can handle peak pulse current up to 1A (8/20µs waveform).
This component is housed in a 16-WDFN exposed pad surface-mount package (supplier package 16-WDFN 6x4). Operating temperature range is -40°C to 85°C. Power line protection is integrated, making it suitable for general-purpose high-speed data line ESD protection.
The CM1233 is particularly suited for DVI and HDMI ports in notebooks, set-top boxes, digital TVs, and LCD displays. Its pass-through impedance matched clamp architecture and flow-through routing maintain signal integrity in high-speed designs.
The reverse standoff voltage is 5.5V.
The typical clamping voltage is 10V.
It provides 4 unidirectional channels.
It is available in a 16-WDFN exposed pad surface-mount package (supplier package 16-WDFN 6x4).
The operating temperature range is -40°C to 85°C.
