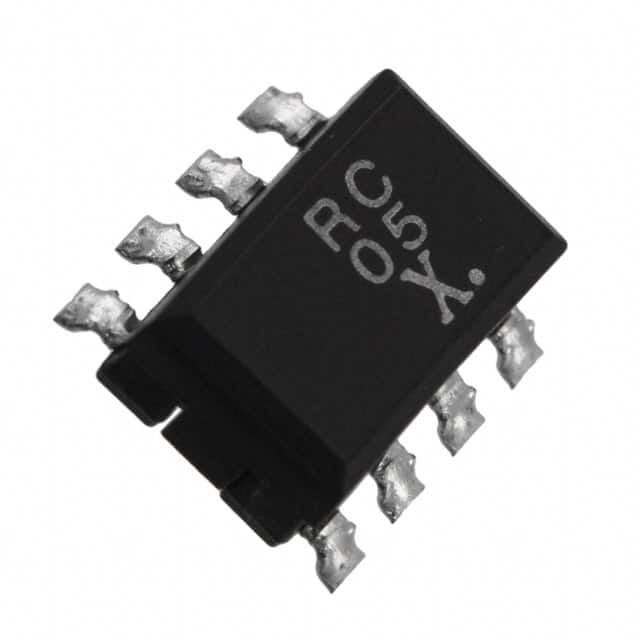

CM04RC05T The CM04RC05T is a 4-line common mode choke from Taiyo Yuden, offering 800Ω impedance at 100MHz, 500mA current rating, and 50V voltage rating. It comes in a surface-mount vertical 8-gull-wing package.
Mfr Part #:

CM04RC05T

Available from 1 distributors
Mfr Name: Taiyo Yuden
Taiyo Yuden
The CM04RC05T is a 4-line common mode choke from Taiyo Yuden, offering 800Ω impedance at 100MHz, 500mA current rating, and 50V voltage rating. It comes in a surface-mount vertical 8-gull-wing package.
✓ Total Stock: 1,013 pcs
$ Price Range: $0.70

CM04RC05T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,013 pcs
On Request
1013 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CM04RC05T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

CM04RC05T Description

Short technical summary and product information.

The CM04RC05T is a common mode choke designed for power and signal line filtering. It features four lines and provides an impedance of 800Ω at 100MHz, making it suitable for suppressing common mode noise in various electronic circuits.



With a maximum current rating of 500mA and a maximum DC resistance of 200mΩ, this choke is suitable for low-power applications. The voltage rating is 50V, and the operating temperature range is -25°C to 105°C.



The component is housed in a vertical, 8-gull-wing surface-mount package with dimensions of 9.80mm x 9.00mm and a maximum height of 4.10mm. This package is designed for automated assembly and space-constrained layouts.

CM04RC05T Quick Information

Product Type: Common Mode Choke
Canonical Name: Common Mode Choke, 4-Line, 800 Ohm @ 100 MHz, 500mA, Surface Mount
Subcategory: Signal Line

CM04RC05T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

CM04RC05T Estimated Pricing

Qty Low High
1,000+ $0.70 $0.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

CM04RC05T Features

  • Four-line common mode filtering.
  • 800Ω impedance at 100MHz.
  • Rated for 500mA and 50V.
  • Surface-mount vertical gull-wing package.
  • Operates from -25°C to 105°C.

CM04RC05T Applications

  • Suppresses common mode noise in signal lines.
  • Filters power line interference.
  • Suitable for low-power electronic devices.
  • Used in compact surface-mount designs.

CM04RC05T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the CM04RC05T?

The impedance is 800Ω at 100MHz.

What is the maximum current rating?

The maximum current rating is 500mA.

What is the operating temperature range?

The operating temperature range is -25°C to 105°C.

What is the package type?

The package is Vertical, 8 Gull Wing, surface mount.

What is the voltage rating?

The voltage rating is 50V.

What is the maximum DC resistance?

The maximum DC resistance is 200mOhm.
