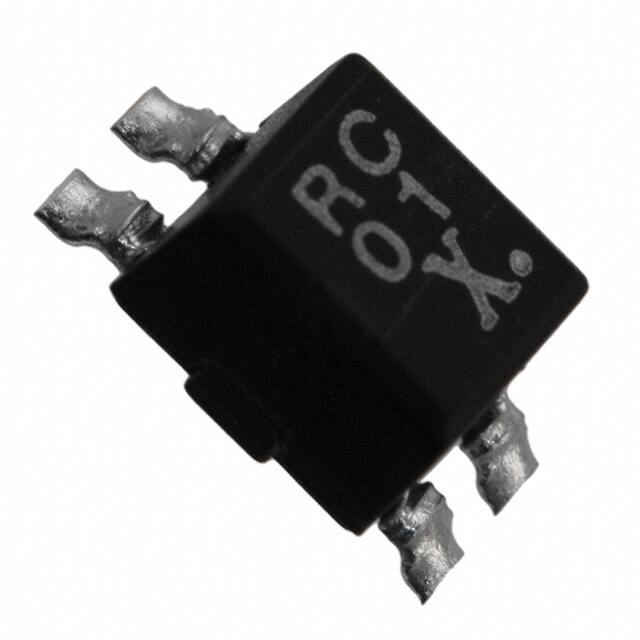

CM04RC01T Common mode choke rated for 1.5A with 800 Ohm impedance at 100 MHz. Surface mount package with 2 lines and 50V voltage rating.
Mfr Part #:

CM04RC01T

Available from 1 distributors
Mfr Name: Taiyo Yuden
Taiyo Yuden
Common mode choke rated for 1.5A with 800 Ohm impedance at 100 MHz. Surface mount package with 2 lines and 50V voltage rating.
✓ Total Stock: 7,243 pcs
$ Price Range: $0.43

CM04RC01T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
7,243 pcs
On Request
7243 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CM04RC01T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

CM04RC01T Description

Short technical summary and product information.

The Taiyo Yuden CM04RC01T is a surface mount common mode choke designed for filtering common mode noise in signal and power lines. It features a 2-line configuration with an impedance of 800 Ohms at 100 MHz, making it suitable for suppressing high-frequency interference.



This choke is rated for a maximum current of 1.5A and a DC resistance of 60 mOhm, ensuring low power loss in the circuit. The voltage rating is 50V, and the operating temperature range spans from -25°C to 105°C, allowing use in a variety of environments.



The component is housed in a horizontal, 4 gull wing surface mount package with dimensions of 5.20mm length, 9.00mm width, and a maximum height of 4.70mm. It is RoHS3 compliant and REACH unaffected, meeting current environmental standards.

CM04RC01T Quick Information

Product Type: Common Mode Choke
Canonical Name: Taiyo Yuden CM04RC01T Common Mode Choke
Subcategory: Surface Mount Common Mode Choke

CM04RC01T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CM04RC01T Estimated Pricing

Qty Low High
1,500+ $0.43 $0.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

CM04RC01T Features

  • 800 Ohm impedance at 100 MHz.
  • Rated for 1.5A maximum current.
  • Low 60 mOhm DC resistance.
  • Surface mount 4 gull wing package.
  • RoHS3 compliant and REACH unaffected.

CM04RC01T Applications

  • Suppress common mode noise in power lines.
  • Filter EMI in signal line circuits.
  • Use in consumer electronics power supplies.
  • Suitable for industrial control interfaces.

CM04RC01T FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the CM04RC01T at 100 MHz?

The impedance is 800 Ohms at 100 MHz.

What is the maximum current rating for this common mode choke?

The maximum current rating is 1.5A.

What is the operating temperature range of the CM04RC01T?

The operating temperature range is -25°C to 105°C.

What is the package type for the CM04RC01T?

It is a surface mount package with a horizontal, 4 gull wing configuration.

Is the CM04RC01T RoHS compliant?

Yes, it is RoHS3 compliant.
