| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color Rendering Index | |
| Dimensions | |
| Forward Current | |
| Forward Voltage | |
| Junction Temperature | |
| Luminous Efficacy | |
| Luminous Flux | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Current | |
| Storage Temperature |

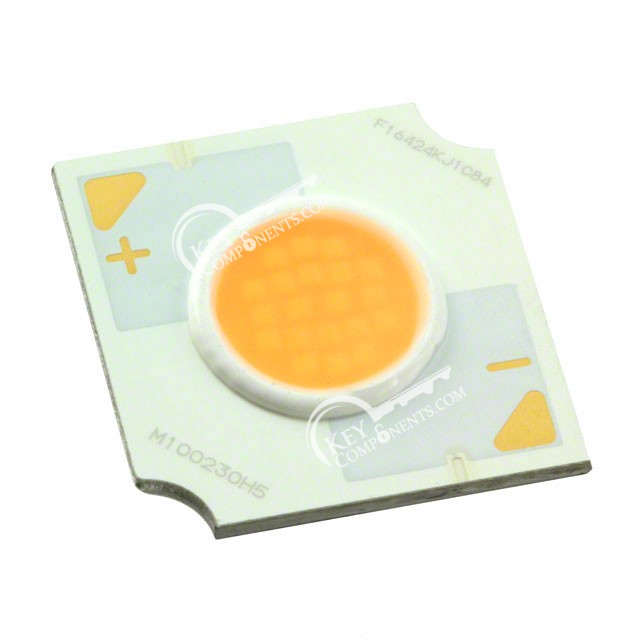

The CLU701-1002C4-273M2K1 is a high-performance Chip On Board (COB) LED module designed for surface mount assembly. Manufactured under the CLU701 series, this component delivers a typical luminous flux of 1163 lumens while operating at an input power of 17.3 watts maximum. It produces a warm white light characterized by a 2700 Kelvin color temperature and an 80 CRI rating, ensuring accurate color rendering for indoor environments.
Electrical characteristics include a forward current rating of 460 mA maximum and a typical forward voltage of 31.3 V at 350 mA and 85°C. The module achieves a luminous efficacy of 106 lm/W under standard test conditions. Thermal management is supported by a maximum case temperature of 105°C and a junction temperature limit of 140°C, with an operating range spanning from -40°C to +100°C.
Mechanically, the COB package measures 13.50 mm by 13.50 mm with a 6.00 mm diameter light-emitting surface. This compact form factor facilitates integration into space-constrained architectural, commercial, and residential lighting fixtures requiring efficient, high-CCT warm white illumination.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
17.3 W
1163 lm
2700 K
-40°C to +100°C
13.50 mm L x 13.50 mm W
140°C
Maximum reverse current is limited to 1 mA
