| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Typical @ 2 pins powered) | |
| Fastening Type | |
| Features | |
| Insertion Depth (Minimum @ Bottom entry) | |
| Insertion Depth (Minimum @ Top Entry) | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Max Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SMT Lead Coplanarity | |
| Style | |
| Termination |

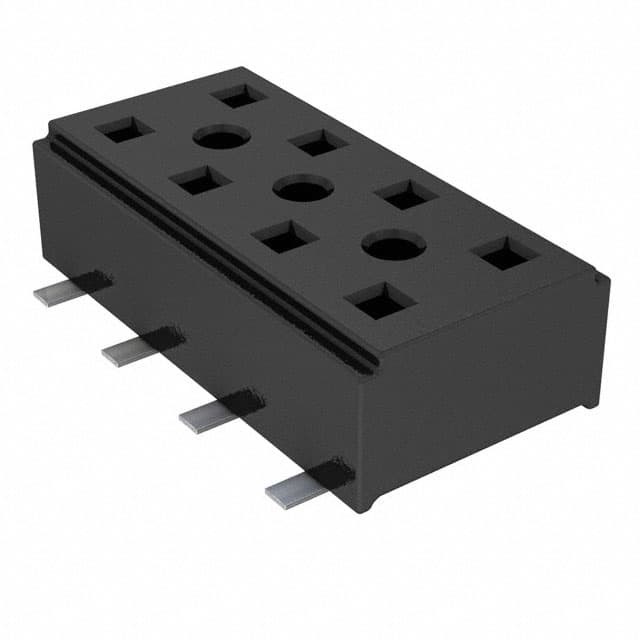

The Samtec CLT-104-02-L-D-BE-A-K-TR is a high-reliability board-to-board receptacle from the CLT series. It features 8 positions arranged in 2 rows with a 2.00mm pitch and row spacing, designed for surface mount soldering. The connector uses a push-pull fastening mechanism and includes a bottom entry design for space-constrained applications.
Electrical performance includes a current rating of 4.1A per contact when 2 pins are powered. The contacts are made of phosphor bronze with 10 µ" (0.25 µm) gold plating on the contact area and matte tin on the tail, over 50 µ" nickel underplating. The insulator is black liquid crystal polymer rated UL94 V-0 for flammability.
Mechanical features include board guide and pick and place pad (polyimide film) for automated assembly. The connector supports a minimum of 100 mating cycles with 10 µ" gold plating. Operating temperature range is -55°C to 125°C. Packaging is tape and reel for automated placement.
8 positions, all loaded, in 2 rows.
2.00mm (0.079") pitch and row spacing.
4.1A per contact when 2 pins are powered.
Surface mount with solder termination.
-55°C to 125°C.
10 µ" (0.25 µm) gold on contact, matte tin on tail, over 50 µ" nickel underplating.
RoHS3 compliant and REACH unaffected.
