| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Flammability Rating | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mating Series | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| SMT Lead Coplanarity | |
| Style | |
| Termination | |
| Termination Style |

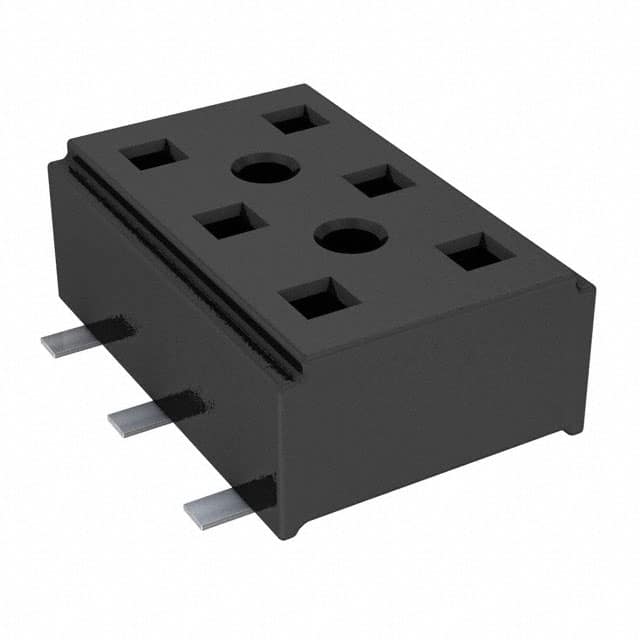

The Samtec CLT-103-02-L-D-BE is a low profile dual wipe socket from the CLT series, offering a 2.00 mm pitch and 6 positions arranged in 2 rows. This receptacle features a bottom entry design suitable for pass-through applications, with surface mount solder termination. The contacts are made of phosphor bronze with a gold finish of 0.25 µm (10 µ") on the contact area and matte tin on the tail, ensuring reliable connectivity and solderability.
The insulator is molded from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector is rated for a current of 4.1 A per contact (with 2 pins powered) and can operate over a temperature range of -55°C to 125°C. It supports data rates up to 8 Gbps NRZ, making it suitable for high-speed signal transmission. The SMT lead coplanarity is a maximum of 0.10 mm, and the minimum insertion depth is 2.57 mm. The connector is designed for up to 100 mating cycles with the specified gold plating.
This bottom entry receptacle is designed to mate with Samtec male pin headers from the TMM, TMMH, MTMM, MMT, TW, and TSH series. It is suitable for board-to-board stacking applications where a low profile and reliable dual wipe contact system are required.
6 positions.
2.00 mm.
4.1 A per contact (2 pins powered).
Surface mount.
-55°C to 125°C.
8 Gbps NRZ.
Gold, 0.25 µm (10 µ") on contact, Matte Tin on tail.
