| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,504 pcs
|
2504 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,504 pcs
|
2504 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insertion Depth (Minimum @ Bottom entry) | |
| Insertion Depth (Minimum @ Top Entry) | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Maximum Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Plating | |
| Row Spacing | |
| SMT Lead Coplanarity | |
| Style | |
| Termination |

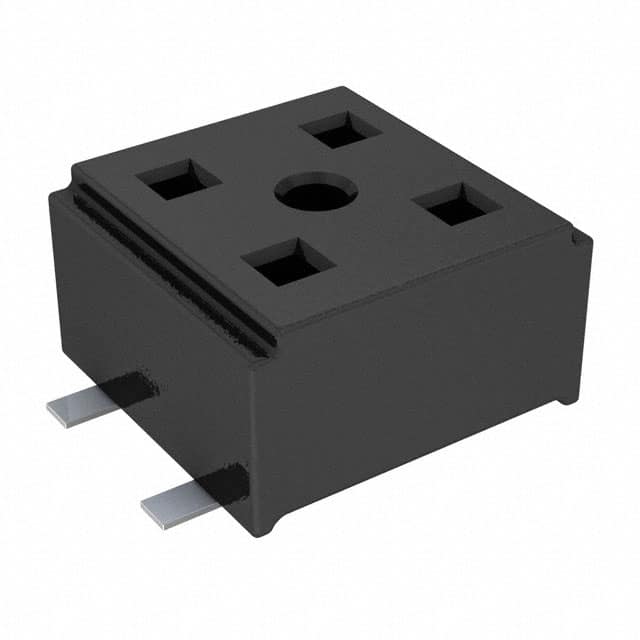

The CLT-102-02-L-D-TR is a 4-position, 2-row receptacle from Samtec's CLT series. It is designed for board-to-board applications with a 2.00mm (0.079") pitch. The connector uses female socket contacts made of phosphor bronze with gold plating over 50 µ" nickel. The insulator is black liquid crystal polymer rated UL94 V-0. The operating temperature range is -55°C to 125°C. The current rating is 4.1A per contact (2 pins powered). The surface mount termination has a lead coplanarity of 0.10mm maximum. Minimum insertion depth is 1.40mm for top entry and 2.57mm for bottom entry. The connector supports up to 100 mating cycles with 10 µ" gold plating. Packaging is tape and reel.
4 positions.
2.00mm (0.079").
4.1A per contact (2 pins powered).
Surface mount.
-55°C to 125°C.
Phosphor bronze.
100 cycles with 10µ" gold plating.
