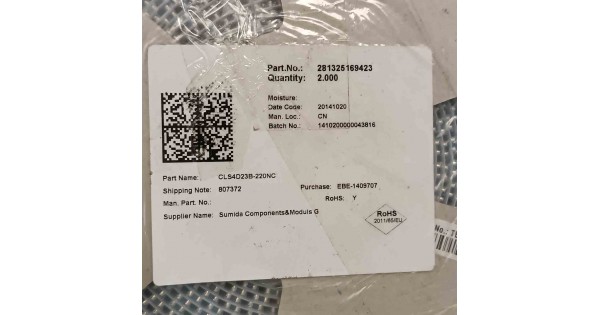

CLS4D23B-220NC The Sumida CLS4D23B-220NC is a surface mount fixed inductor with a 22µH inductance and a current rating of 850mA. It features a DCR of 430mOhm.
Mfr Part #:

CLS4D23B-220NC

Available from 1 distributors
Mfr Name: SUMIDA CORP
SUMIDA CORP
The Sumida CLS4D23B-220NC is a surface mount fixed inductor with a 22µH inductance and a current rating of 850mA. It features a DCR of 430mOhm.
✓ Total Stock: 6,000 pcs

CLS4D23B-220NC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CLS4D23B-220NC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Storage Temperature
Tape & Reel
Tolerance
Width
View Similar Products (0)

CLS4D23B-220NC Description

Short technical summary and product information.

The Sumida CLS4D23B-220NC is a fixed inductor from the CLS Series, designed for surface mount applications. It offers an inductance value of 22µH with a tolerance of ±30% and a maximum DCR of 0.85Ω (parallel) or 0.42Ω (series) at 20°C.



This inductor is rated for a current of 850mA and has a saturation current of 430mA at 20°C. It operates within a temperature range of -40°C to 105°C. The core material is ferrite, and it is unshielded.



Designed for high efficiency DC-DC converters, this 2-in-1 coil can be used as inductors or transformers. It is suitable for applications such as power supplies for DSC, Note PC, DVC, and W-LED backlighting. The component has dimensions of 5.00mm L x 4.80mm W x 2.50mm H.



This part is RoHS3 compliant and has an MSL rating of 1.

CLS4D23B-220NC Quick Information

Product Type: Fixed Inductor
Series: CLS Series
Canonical Name: Sumida CLS4D23B-220NC Power Inductor
Subcategory: 2 in 1 Transformer

CLS4D23B-220NC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CLS4D23B-220NC Features

  • 22µH inductance with ±30% tolerance.
  • 850mA current rating and 430mΩ DCR.
  • Ferrite core, unshielded construction.
  • Surface mount package, 5.00mm x 4.80mm x 2.50mm.
  • Suitable for DC-DC converters.

CLS4D23B-220NC Applications

  • Power supplies for DSC.
  • Note PC power applications.
  • DVC power solutions.
  • W-LED backlighting.

CLS4D23B-220NC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the CLS4D23B-220NC?

The nominal inductance is 22 µH with a tolerance of ±30%.

What is the current rating of the CLS4D23B-220NC?

The maximum current rating is 850 mA.

What is the DC resistance (DCR) of the CLS4D23B-220NC?

The maximum DCR is 0.85 Ω at 20°C.

What is the operating temperature range of the CLS4D23B-220NC?

The operating temperature range is -40°C to +105°C, including self-heating.

What is the mounting type for the CLS4D23B-220NC?

The mounting type is Surface Mount (SMD).

What is the saturation current of the CLS4D23B-220NC?

The maximum saturation current is 430 mA at 20°C.

What is the core material of the CLS4D23B-220NC?

The core material is ferrite.
