| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
330 pcs
|
330 pcs | On Request | 1 | On Request | On Request | 1311+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

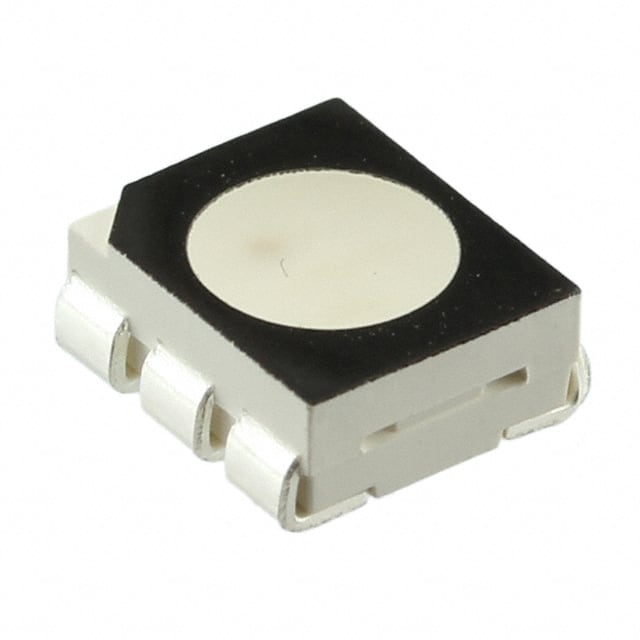

The Cree CLP6C-FKB-CM1Q1H1BB7R3R3 is a full-color, 3-in-1 SMD LED designed for high-intensity light output and a wide viewing angle. It comes in an industry-standard 6-PLCC package, measuring 6.0mm x 5.0mm with a height of 2.60mm.
This LED features independent Red, Green, and Blue emitters. The typical forward voltage is 2V for Red and 3.2V for Green and Blue, with a typical forward current of 20mA for each color. Luminous intensity ratings are 915mcd for Red, 1820mcd for Green, and 457.5mcd for Blue at 20mA. The dominant wavelengths are 621.5nm for Red, 530nm for Green, and 470nm for Blue. The viewing angle is a wide 120 degrees.
Designed for a variety of environmental conditions, this LED is suitable for indoor video screens, decorative lighting, and amusement applications. It operates within a temperature range of -40°C to +100°C and is RoHS3 compliant.
The LED is surface-mounted and comes on a reel, with a standard package quantity of 900 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2V for Red and 3.2V for Green and Blue.
The typical luminous intensity is 915mcd for Red, 1820mcd for Green, and 457.5mcd for Blue.
The dominant wavelengths are 621.5nm for Red, 530nm for Green, and 470nm for Blue.
The viewing angle is 120 degrees.
The LED package dimensions are 6.0mm in length and 5.0mm in width.
The operating temperature range is from -40°C to +100°C.
Yes, this LED is RoHS3 Compliant.
