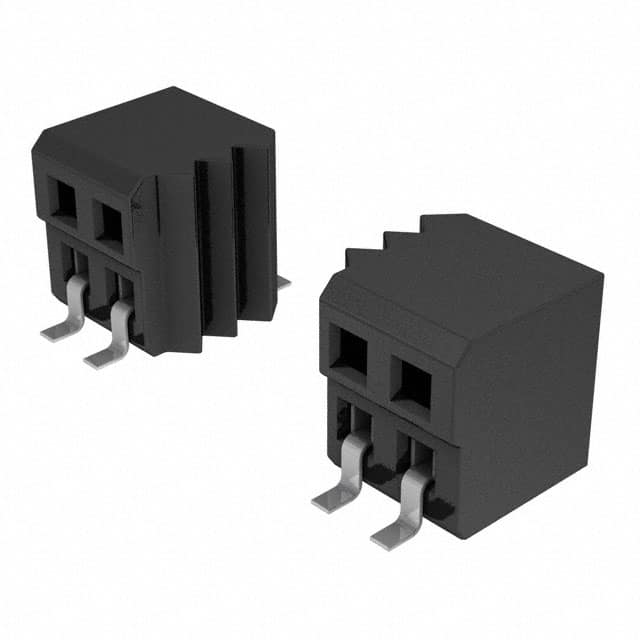

The Samtec CLP-110-02-L-DH-A-TR is a low-profile, dual-wipe socket connector designed for board-to-board applications. It features 20 positions arranged in 2 rows on a 1.27mm pitch, with a right-angle surface mount termination. The insulator is black liquid crystal polymer with UL94 V-0 flammability rating, and the contacts are phosphor bronze with 10 µ" gold plating on the mating area and matte tin on the tails.
This connector is rated for 3.4A per pin (2 pins powered) and 280 VAC/395 VDC, with an operating temperature range of -55°C to +125°C. It includes alignment pins for secure placement and a board guide feature. The DH (Double Horizontal) option allows for horizontal mating, and it mates with Samtec FTSH, FTS, and FW series headers.
The packaging is tape and reel for automated assembly. The SMT lead coplanarity is 0.10mm max for positions 02-35, ensuring reliable soldering. The insertion depth varies by entry type: top entry 1.40mm minimum, bottom entry 2.41mm minimum plus board thickness, and DH entry 2.31mm to 2.67mm.
20 positions in 2 rows.
1.27mm (0.050").
3.4A per pin (2 pins powered).
280 VAC and 395 VDC.
Surface mount, right angle.
-55°C to +125°C.
Gold on mating area (10 µ") and matte tin on tails.
