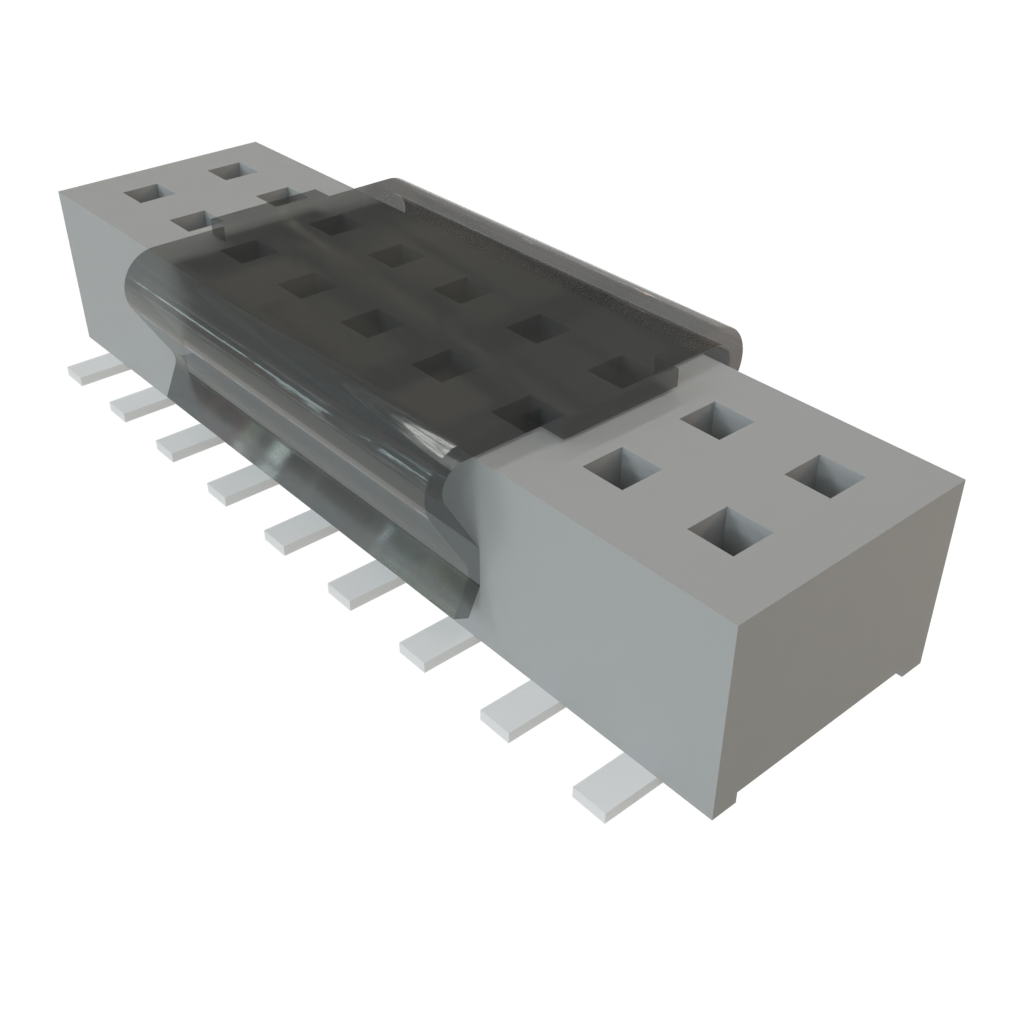

CLP-109-02-L-D-P-TR The Samtec CLP-109-02-L-D-P-TR is an 18-position, 2-row socket strip with a 1.27mm pitch. It features Surface Mount termination and supports up to 8 Gbps performance.
Mfr Part #:

CLP-109-02-L-D-P-TR

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec CLP-109-02-L-D-P-TR is an 18-position, 2-row socket strip with a 1.27mm pitch. It features Surface Mount termination and supports up to 8 Gbps performance.
✓ Total Stock: 1,675 pcs
$ Price Range: $1.00

CLP-109-02-L-D-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
1,675 pcs
On Request
1675 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CLP-109-02-L-D-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Plating
Halogen Free
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

CLP-109-02-L-D-P-TR Description

Short technical summary and product information.

The Samtec CLP-109-02-L-D-P-TR is a low-profile socket strip designed for reliable printed circuit board mounting. It features an 18-position, 2-row configuration with a 1.27mm pitch, suitable for both top- and bottom-entry applications.



This socket strip utilizes Samtec's Tiger Claw™ dual-wipe contact system and offers up to 8 Gbps performance. The termination style is Surface Mount (SMT), and it comes equipped with a Pick and Place Pad for automated assembly. The contact plating is 10µin Gold/Tin.



Packaged in Tape & Reel with a standard quantity of 1675 pieces, this component is designed for efficient manufacturing processes. Its rugged construction and performance capabilities make it suitable for various electronic applications requiring high-speed data transmission.

CLP-109-02-L-D-P-TR Quick Information

Product Type: Socket Strip
Series: CLP
Canonical Name: Samtec CLP-109-02-L-D-P-TR 1.27mm Low Profile Socket Strip
Subcategory: Female Sockets

CLP-109-02-L-D-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CLP-109-02-L-D-P-TR Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

CLP-109-02-L-D-P-TR Features

  • 18 positions, 2 rows socket strip.
  • 1.27mm pitch for compact designs.
  • Surface Mount termination for automated assembly.
  • Supports up to 8 Gbps performance.
  • Tiger Claw™ dual-wipe contact system.

CLP-109-02-L-D-P-TR Applications

  • Suitable for high-speed data applications.
  • Ideal for compact PCB designs.
  • Used in board-to-board interconnects.
  • Supports automated assembly processes.

CLP-109-02-L-D-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the CLP-109-02-L-D-P-TR?

1.27 mm

How many positions does this connector have?

18 positions

How many rows does it have?

2 rows

What is the mounting type?

Surface Mount

What is the contact plating?

10µin Gold/Tin

What is the maximum data rate?

Up to 8 Gbps

Does it come with a pick and place pad?

Yes
