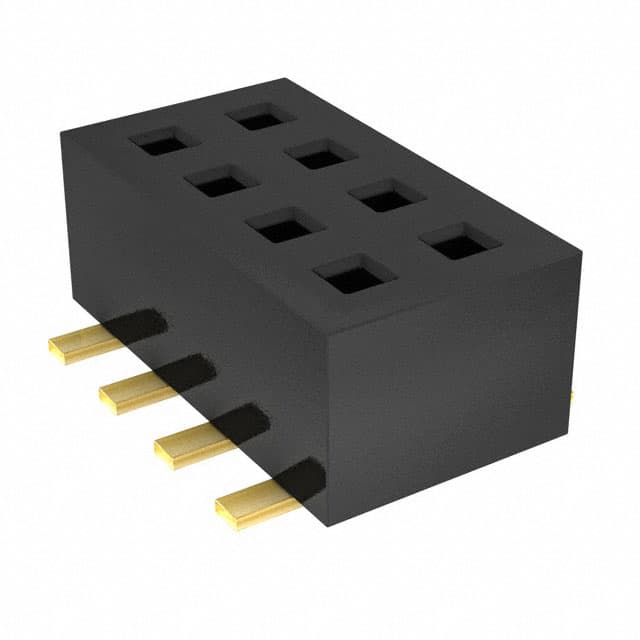

The Samtec CLP-104-02-G-D-TR is an 8 position dual row female socket receptacle from the CLP series. Designed for board-to-board stacking applications, this connector features a 1.27mm (0.050") pitch with the same row spacing. The receptacle uses phosphor bronze contacts with 10µ" (0.25µm) gold plating over 50µ" (1.27µm) nickel, housed in a black liquid crystal polymer insulator rated UL94 V-0.
Electrical ratings include 3.3A per contact (nominal) and 240VAC / 330VDC. The operating temperature range is -55°C to +125°C. This surface mount termination style uses solder tails with a maximum coplanarity of 0.10mm. The connector is supplied in tape and reel packaging for automated assembly and is lead-free solderable.
Designed to mate with Samtec FTSH, FTS, and FW series headers, the CLP-104-02-G-D-TR supports push-pull fastening and is suited for high-density board stacking. The 10µ" gold finish provides reliable contact performance for up to 100 mating cycles.
8 positions, all loaded, in a dual row configuration.
1.27mm (0.050") pitch with the same row spacing.
3.3A per contact (nominal) and 3.4A per pin with 2 pins powered (typical).
240VAC and 330VDC (nominal). Datasheet also specifies 280VAC and 395VDC.
Surface mount (SMD) with solder termination.
-55°C to +125°C.
