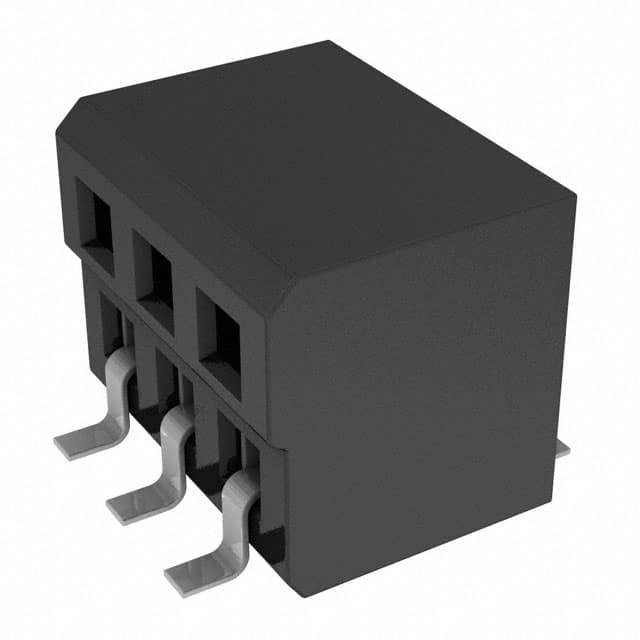

The Samtec CLP-103-02-L-DH-TR is a 6-position, dual-row receptacle from the CLP series, designed for board-to-board interconnects on a 1.27mm pitch. It features a surface mount, right angle termination style with gold plating on the mating area (10 µ") and matte tin on the tails, ensuring reliable signal integrity and solderability. The insulator is black liquid crystal polymer with a UL94 V-0 flammability rating, and the contacts are phosphor bronze.
Electrically, this connector is rated for 3.4A per pin (with 2 pins powered) and 280VAC/395VDC, with an operating temperature range of -55°C to +125°C. The push-pull fastening type and double horizontal (DH) entry option allow for secure mating with compatible Samtec headers such as FTSH, FTS, and FW series.
Packaged in tape and reel for automated assembly, the CLP-103-02-L-DH-TR is suitable for high-density applications requiring a low-profile, dual-wipe socket. The SMT lead coplanarity is controlled to 0.10mm maximum for reliable soldering. With 100 mating cycles (with 10 µ" gold), it offers durability for moderate-use designs.
It has 6 positions in a dual-row configuration.
The pitch is 1.27mm (0.050").
The datasheet specifies 3.4A per pin when 2 pins are powered.
Rated for 280VAC and 395VDC per the datasheet.
Surface mount, right angle.
-55°C to +125°C.
Gold plating on the mating area (10 µ") and matte tin on the tails.
