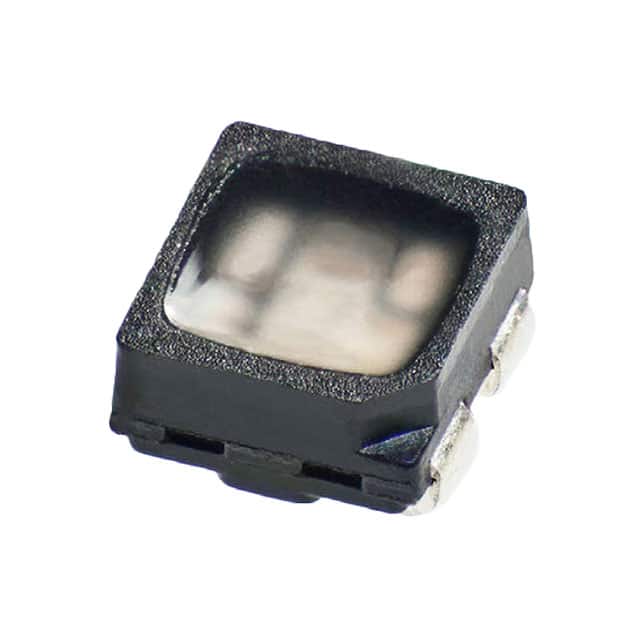

CLMVB-FKA-CFHEHLCBB7A363 The Cree LED CLMVB-FKA-CFHEHLCBB7A363 is a surface-mount RGB LED with a diffused lens. It offers distinct voltage and current ratings for red, green, and blue light emission.
Mfr Part #:

CLMVB-FKA-CFHEHLCBB7A363

Available from 1 distributors
Mfr Name: CreeLED, Inc.
CreeLED, Inc.
The Cree LED CLMVB-FKA-CFHEHLCBB7A363 is a surface-mount RGB LED with a diffused lens. It offers distinct voltage and current ratings for red, green, and blue light emission.
✓ Total Stock: 11 pcs
$ Price Range: $0.08

CLMVB-FKA-CFHEHLCBB7A363 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CLMVB-FKA-CFHEHLCBB7A363 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lead Style
Lens Color
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Voltage
Wavelength
View Similar Products (0)

CLMVB-FKA-CFHEHLCBB7A363 Description

Short technical summary and product information.

The Cree LED CLMVB-FKA-CFHEHLCBB7A363 is a discrete RGB LED designed for surface mount applications. It comes in a 4-PLCC package with J-lead terminations, measuring 2.00mm in length and 2.00mm in width.



This LED features a common anode configuration and provides red, green, and blue light. The voltage ratings are 2V for red and 3V for green and blue. Current ratings are 20mA for red and 10mA for green and blue. The specific wavelengths for each color are 622nm for red, 530nm for green, and 470nm for blue. The luminous intensity is rated at 337mcd for red, 315mcd for green, and 98mcd for blue.



The lens is white, diffused, and square with a flat top. The maximum height of the component is 1.00mm. This LED is RoHS3 compliant and has an MSL rating of 1, indicating unlimited moisture sensitivity.



This component is suitable for various indication applications where a combination of red, green, and blue light is required. Its surface-mount design facilitates automated assembly processes.

CLMVB-FKA-CFHEHLCBB7A363 Quick Information

Product Type: LED Indication - Discrete
Canonical Name: Cree LED CLMVB-FKA-CFHEHLCBB7A363 RGB Diffused LED
Subcategory: RGB LED

CLMVB-FKA-CFHEHLCBB7A363 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CLMVB-FKA-CFHEHLCBB7A363 Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

CLMVB-FKA-CFHEHLCBB7A363 Features

  • RGB LED with diffused lens.
  • Surface mount 4-PLCC package.
  • Distinct voltage and current ratings.
  • Specific wavelengths for R, G, B.
  • RoHS3 compliant.

CLMVB-FKA-CFHEHLCBB7A363 Applications

  • Indicator lights for control panels.
  • Status signaling in electronic devices.
  • Color mixing applications.
  • General purpose RGB indication.

CLMVB-FKA-CFHEHLCBB7A363 FAQs

6 frequently asked questions generated from this part’s specifications.
What are the voltage ratings for the Cree LED CLMVB-FKA-CFHEHLCBB7A363?

The voltage ratings are 2V for Red, 3V for Green, and 3V for Blue.

What is the current rating for each color on the CLMVB-FKA-CFHEHLCBB7A363 LED?

The current ratings are 20mA for Red, 10mA for Green, and 10mA for Blue.

What are the wavelengths for the Red, Green, and Blue emitters in this LED?

The wavelengths are 622nm for Red, 530nm for Green, and 470nm for Blue.

What is the package type for the CLMVB-FKA-CFHEHLCBB7A363?

The package is 4-SMD, J-Lead, also referred to as 4-PLCC.

How is the CLMVB-FKA-CFHEHLCBB7A363 mounted?

This LED is designed for Surface Mount.

What is the luminous intensity for the Red, Green, and Blue colors?

The luminous intensity is 337mcd for Red, 315mcd for Green, and 98mcd for Blue.
