| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,463 pcs
|
1463 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 02:15:38 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

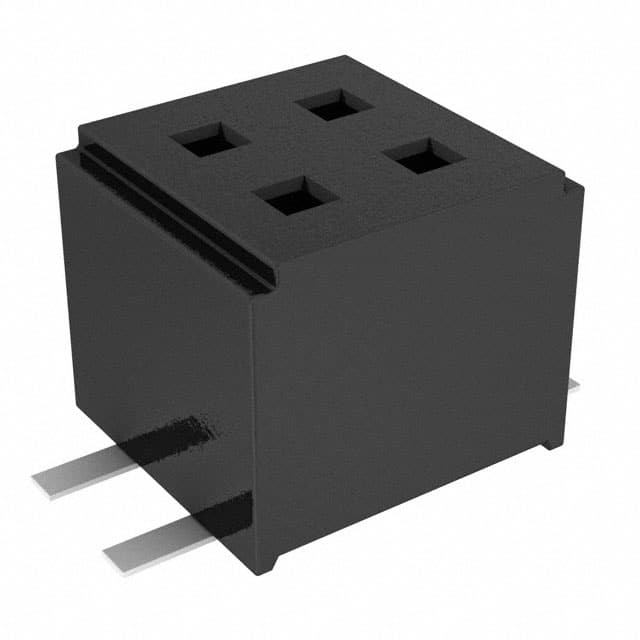

The Samtec CLM-102-02-F-D-TR is a low profile dual-wipe socket from the CLM series, designed for board-to-board applications. This 4 position, 2 row receptacle features a 1.00mm pitch and 1.00mm row spacing, making it suitable for compact designs. The connector uses a push-pull fastening type and is surface mount with solder termination.
Electrical ratings include 2.8A per contact (nominal) and 270 VAC. The operating temperature range is -55°C to +125°C. The insulator is black LCP with a UL94 V-0 flammability rating, and contacts are phosphor bronze with gold flash plating.
The part is supplied in tape and reel packaging with a standard quantity of 1875 pieces. It is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
It has 4 positions in 2 rows.
The pitch is 1.00 mm.
The nominal current rating is 2.8 A per contact.
The voltage rating is 270 VAC.
Surface mount with solder termination.
