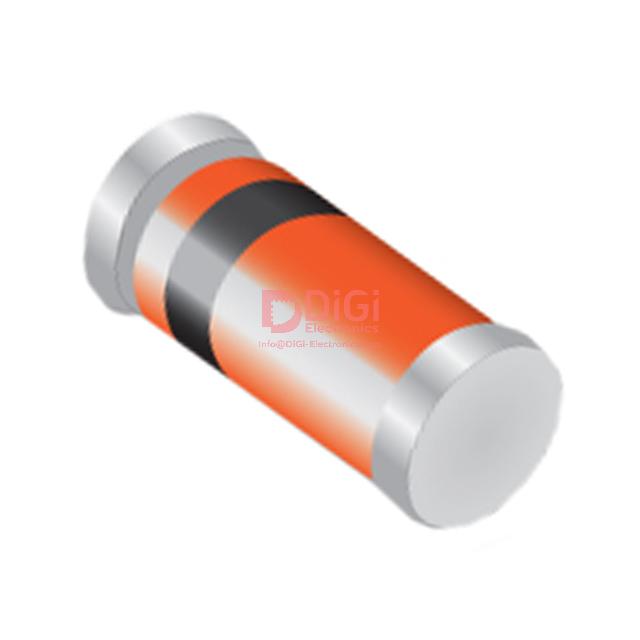

CLL5245B TR The Central Semiconductor Corp CLL5245B TR is a Zener Diode with a nominal voltage of 15V and a power rating of 500mW. It features a surface mount package.
Mfr Part #:

CLL5245B TR

Available from 1 distributors
Mfr Name: Central Semiconductor Corp
Central Semiconductor Corp
The Central Semiconductor Corp CLL5245B TR is a Zener Diode with a nominal voltage of 15V and a power rating of 500mW. It features a surface mount package.
✓ Total Stock: 13,000 pcs
$ Price Range: $165.89

CLL5245B TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
13,000 pcs
On Request
13000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CLL5245B TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Package / Case
Power Dissipation (Max)
Tape & Reel
View Similar Products (0)

CLL5245B TR Description

Short technical summary and product information.

This Zener Diode from Central Semiconductor Corp, part number CLL5245B TR, is designed for various electronic applications requiring stable voltage regulation. It offers a nominal Zener voltage of 15V with a tolerance of ±5%, ensuring precise voltage control.



The diode has a maximum power dissipation of 500mW, making it suitable for moderate power applications. Its reverse leakage current is rated at 100 nA at 11V, and the forward voltage is a maximum of 1.25V at 200mA. The operating temperature range is from -65°C to 200°C.



Packaged in a surface mount DO-213AC, MINI-MELF, SOD-80 case, this component is ideal for automated assembly processes. The Tape & Reel (TR) packaging facilitates high-volume production. Its robust construction and specified performance characteristics make it a reliable choice for circuit designers.

CLL5245B TR Quick Information

Product Type: Zener Diode
Canonical Name: CLL5245B TR Zener Diode
Subcategory: Zener Diode

CLL5245B TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CLL5245B TR Estimated Pricing

Qty Low High
1+ $165.89 $165.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

CLL5245B TR Features

  • 15V nominal Zener voltage.
  • 500mW maximum power dissipation.
  • ±5% voltage tolerance.
  • Surface mount DO-213AC package.
  • Wide operating temperature range.

CLL5245B TR Applications

  • Used for voltage regulation in electronic circuits.
  • Suitable for protecting sensitive components from voltage spikes.
  • Ideal for power supply and voltage reference applications.
  • Employed in consumer electronics for voltage stabilization.
  • Applicable in industrial control systems requiring precise voltage limits.

CLL5245B TR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the CLL5245B TR?

The nominal Zener voltage is 15 V.

What is the power rating of the CLL5245B TR?

The maximum power dissipation is 500 mW.

What is the tolerance of the CLL5245B TR?

The tolerance is ±5%.

What is the package type for the CLL5245B TR?

The package type is DO-213AC, MINI-MELF, SOD-80.

How is the CLL5245B TR mounted?

It is a surface mount device.
