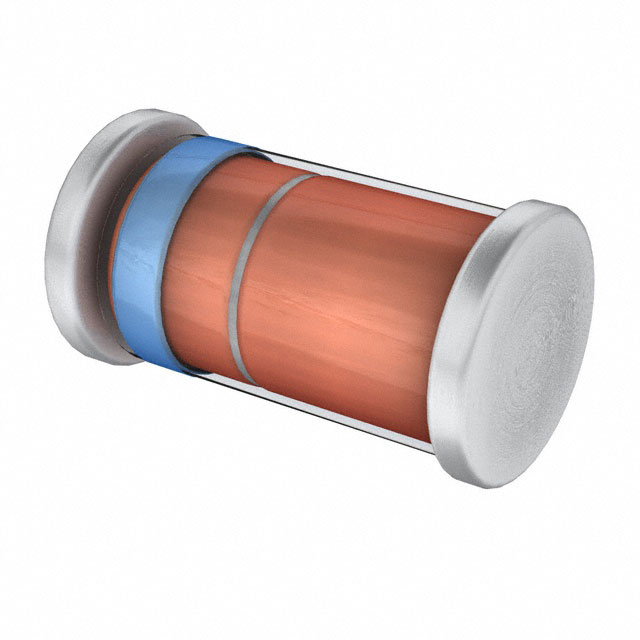

CLL4729A TR Zener diode with nominal voltage 3.6V, power dissipation 1W, surface mount MELF package. Suitable for voltage regulation in industrial and commercial applications.
Mfr Part #:

CLL4729A TR

Available from 1 distributors
Mfr Name: Central Semiconductor Corp
Central Semiconductor Corp
Zener diode with nominal voltage 3.6V, power dissipation 1W, surface mount MELF package. Suitable for voltage regulation in industrial and commercial applications.
✓ Total Stock: 4,700 pcs
$ Price Range: $0.04

CLL4729A TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
4,700 pcs
On Request
4700 pcs On Request 1 On Request On Request On Request On Request 2026-02-23 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CLL4729A TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Impedance (Max) (Zzt)
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Termination Style
Tolerance
Voltage
View Similar Products (0)

CLL4729A TR Description

Short technical summary and product information.

The Central Semiconductor CLL4729A is a silicon Zener diode designed for voltage regulation in surface mount applications. It offers a nominal Zener voltage of 3.6V at a test current of 69mA, with a maximum Zener impedance of 10Ω. The diode can dissipate up to 1W of power and operates over a junction temperature range of -65°C to 200°C. Reverse leakage current is limited to 100µA at 1V, and forward voltage is 1.2V max at 200mA. The part is available in a surface mount MELF package (DO-213AB) with solderable ends, suitable for industrial, commercial, entertainment, and computer applications. Tolerance is ±5% as indicated by the "A" suffix. Maximum Zener current is 1260mA.

CLL4729A TR Quick Information

Product Type: Zener Diode
Series: CLL4728A-CLL4764A
Canonical Name: Zener Diode 3.6V, 1W, Surface Mount, MELF, DO-213AB
Subcategory: Single Zener Diode

CLL4729A TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

CLL4729A TR Estimated Pricing

Qty Low High
7,500+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

CLL4729A TR Features

  • Nominal Zener voltage of 3.6V.
  • Power dissipation rated at 1W.
  • Surface mount MELF package.
  • ±5% tolerance on Zener voltage.
  • Operating temperature range -65°C to 200°C.

CLL4729A TR Applications

  • Used in industrial voltage regulation circuits.
  • Suitable for commercial power supplies.
  • Ideal for entertainment electronics.
  • Applicable in computer voltage reference.

CLL4729A TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the CLL4729A?

3.6V at IZT=69mA.

What is the maximum power dissipation?

1W.

What is the forward voltage?

1.2V max at IF=200mA.

What is the package type?

Surface mount MELF (DO-213AB).

What is the tolerance on Zener voltage?

±5%.

What is the maximum Zener current?

1260mA.

What is the operating temperature range?

-65°C to 200°C.
