| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
415 pcs
|
415 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Core Material | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| RMS Current | |
| Ratings | |
| Saturation Current | |
| Shielding | |
| Tape & Reel | |
| Test Frequency | |
| Tolerance | |
| Type | |
| Width |

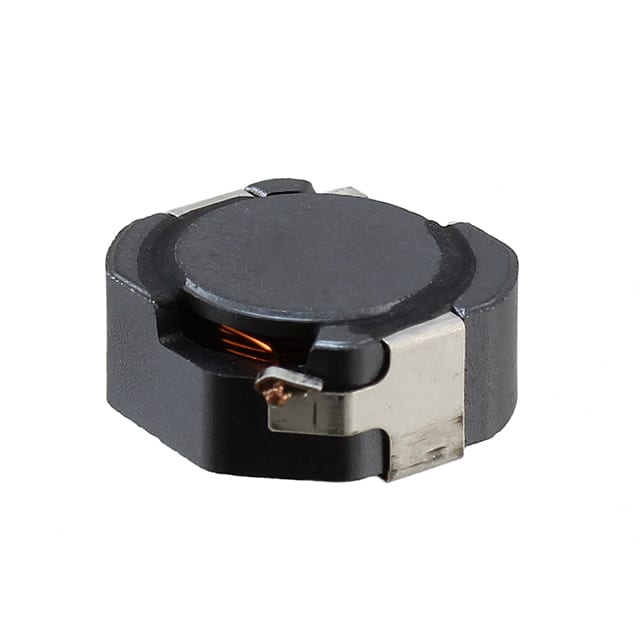

This TDK Corporation CLF12555T-470M-D is a surface mount wirewound power inductor designed for demanding applications. It offers a nominal inductance of 47µH with a tolerance of ±20% and a low DC resistance of 120mΩ.
The inductor is shielded and constructed with a ferrite core, providing high magnetic shielding for EMC protection. It has a rated current of 1.8A and a saturation current of 3.2A, making it suitable for power applications. The operating temperature range is -40°C to 150°C, and it is AEC-Q200 qualified, indicating its suitability for automotive environments.
With a compact size of 12.5mm x 12.1mm and a low profile of 5.85mm maximum height, this inductor is designed for automatic mounting on tape and reel packaging. Its tough design offers resistance to heat, vibration, and mechanical shock, making it ideal for automotive electric control devices and high-temperature operation devices.
47µH at 100kHz with ±20% tolerance.
RMS current rating is 1.8A, saturation current is 3.2A.
Maximum DC resistance is 120mΩ.
Surface mount, nonstandard case, 12.5mm x 12.1mm x 5.85mm.
-40°C to 150°C.
Yes, it has a shielded ferrite core.
Yes, it is AEC-Q200 qualified for automotive applications.
