| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style |

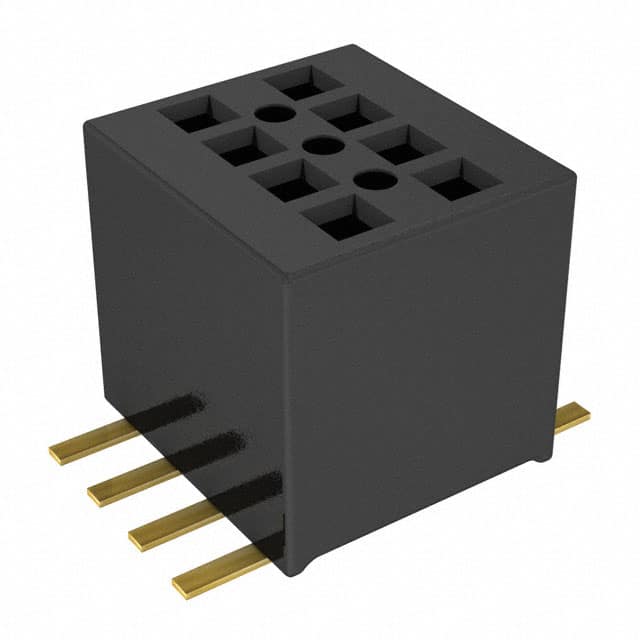

The Samtec CLE-104-01-G-DV is a high-density board-to-board receptacle connector designed for compact electronic assemblies. It features 8 positions arranged in 2 rows with a 0.80mm pitch and 1.20mm row spacing, enabling space-efficient PCB designs.
This receptacle uses female socket contacts with gold finish (10.0µin) for reliable low-resistance connections. It is rated for 2.7A per contact and operates over a wide temperature range of -55°C to +125°C. The push-pull fastening type ensures secure mating while allowing easy disconnection.
The connector is surface mount with solder termination and has a black insulation body with a height of 3.30mm. It is UL94 V-0 flammability rated and RoHS3 compliant. All 8 positions are loaded, making it suitable for full-signal applications in dense PCB layouts.
The connector has 8 positions arranged in 2 rows.
The pitch is 0.80mm (0.031 inches).
The current rating is 2.7A per contact.
The connector is surface mount with solder termination.
The operating temperature range is -55°C to +125°C.
