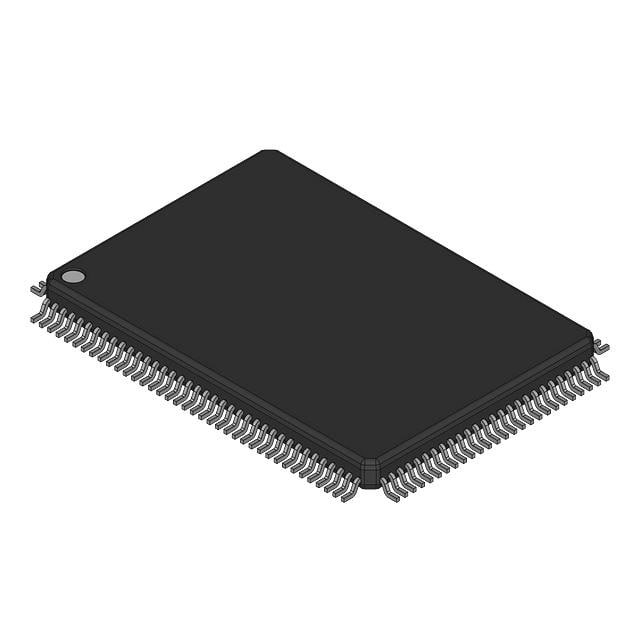

CLC5903VLA The Texas Instruments CLC5903VLA is a Dual Digital Tuner / AGC IC designed for high-performance receiver applications. It features a 78MSPS maximum sample rate and independent channel programmability.
Mfr Part #:

CLC5903VLA

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CLC5903VLA is a Dual Digital Tuner / AGC IC designed for high-performance receiver applications. It features a 78MSPS maximum sample rate and independent channel programmability.
✓ Total Stock: 6,000 pcs
$ Price Range: $27.44

CLC5903VLA Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request 1648/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CLC5903VLA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Filter Type
Frequency
Function
Mounting Type
Power Consumption
RF Type
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
View Similar Products (0)

CLC5903VLA Description

Short technical summary and product information.

The CLC5903VLA from Texas Instruments is a Dual Digital Tuner / AGC IC, functioning as a key component in advanced receiver chipsets. This IC offers two independent channels, each capable of digital downconversion (DDC) with integrated automatic gain control (AGC).



Key electrical specifications include a maximum sample rate of 78MSPS and a typical operating frequency of 52MHz. The device boasts high dynamic range performance with greater than 100 dB image rejection and spurious free dynamic range. It supports 14-bit inputs and features programmable filters, including a 4-stage CIC filter and two symmetric FIR filters (21-tap and 63-tap). The decimation ratio for the CIC filter is programmable from 8 to 2048.



Designed for efficiency, the CLC5903VLA consumes low power, rated at 145mW per channel at 52MHz with a decimation of 192. The AGC controller monitors ADC output and adjusts DVGA settings for optimal signal levels. The tuning resolution is a precise 0.02 Hz.



This component is available in a 128-BFQFP package and is designed for surface mount applications. Its robust design makes it suitable for enhanced receiver performance and reduced system costs in various communication systems.

CLC5903VLA Quick Information

Product Type: RF Misc ICs and Modules
Canonical Name: CLC5903 Dual Digital Tuner / AGC IC
Subcategory: RF Misc ICs

CLC5903VLA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CLC5903VLA Estimated Pricing

Qty Low High
1+ $27.44 $27.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

CLC5903VLA Features

  • Dual channel digital tuner with AGC.
  • Maximum sample rate of 78MSPS.
  • High dynamic range with >100dB rejection.
  • Programmable CIC and FIR filters.
  • Surface mount 128-BFQFP package.

CLC5903VLA Applications

  • Used in digital receiver chipsets.
  • Suitable for direct IF sampling.
  • Enhances receiver performance.
  • Reduces system costs.

CLC5903VLA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum sample rate of the CLC5903VLA?

78MSPS

What is the typical sample rate of the CLC5903VLA?

52MHz

What is the image rejection capability of the CLC5903VLA?

Greater than 100dB

What package does the CLC5903VLA come in?

128-BFQFP

What is the power consumption of the CLC5903VLA at 52 MHz?

145mW/channel
