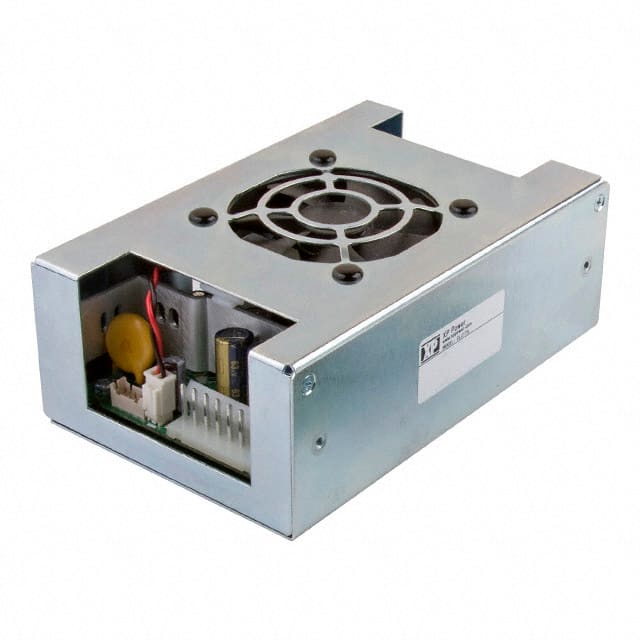

The XP Power CLC175US12-MTF is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a 12V output voltage with a maximum current of 13.9A, delivering up to 55W of power under natural convection and 125W with forced air.
Key electrical specifications include an input voltage range of 85-264 VAC, an efficiency of 87% typical, and comprehensive protection features such as overvoltage, overload, and short circuit protection. The converter supports remote sense and remote on/off functionalities, along with a 5V standby option.
This unit features a chassis mount type and measures 101.6mm x 50.8mm x 31.8mm. It operates within a temperature range of 0°C to 70°C, with derating applied above 50°C. The isolation rating is 3000 VAC input to output, with higher ratings available for specific versions.
Compliance includes standards like EN62368-1 and various EMC certifications such as EN55011/32 level B conducted emissions. It is RoHS3 compliant and has an MSL rating of 1.
85-264 VAC (120-370 VDC).
12-48 V, adjustable ±5%.
0°C to 70°C with derating above 50°C.
Enclosed chassis-mount.
87% typical.
3000 VAC input to output (4000 VAC for -M option), 2 x MOPP.
Overvoltage (115-140%), overload (110-150% V1 only), short circuit (hiccup mode).
