| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

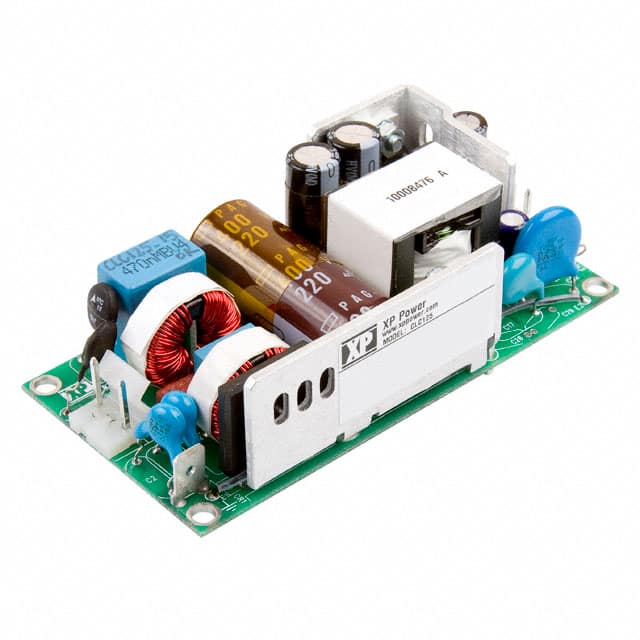

The XP Power CLC125US24 is an open-frame AC-DC converter designed for ITE (Commercial) applications. It delivers a 24VDC output and can provide up to 125W under forced air cooling conditions.
This converter operates with a wide input voltage range of 85-264 VAC and features a typical efficiency of 88%. Key electrical specifications include adjustable output voltage with ±10% trim, ±1% load regulation, and ±0.5% line regulation. It offers robust protection features such as overvoltage, overload, and continuous short circuit protection in a hiccup mode.
The CLC125US24 has a compact, low-profile design with industry-standard package dimensions of 4.00" x 2.00" x 1.25". It is designed for chassis mounting and operates within a temperature range of 0°C to 70°C, with derating applied above 50°C. The unit meets various safety and EMC standards, including IEC62368-1 and EN55032 Class B conducted emissions.
The input voltage range is 85-264 VAC (47-63 Hz) or 120-370 VDC.
Yes, the output voltage can be trimmed by ±10%.
The operating temperature range is 0°C to +70°C, with derating above +50°C.
The dimensions are 101.6mm (L) x 50.8mm (W) x 31.8mm (H).
The typical efficiency is 88%.
The calculated MTBF is 1,245,000 hours at 25°C per Telcordia SR-332.
It is certified to IEC60950-1, IEC62368-1, UL62368-1, CAN/CSA C22.2 No. 62368-1-14, and EN62368-1.
