| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Termination | |
| Voltage Rating |

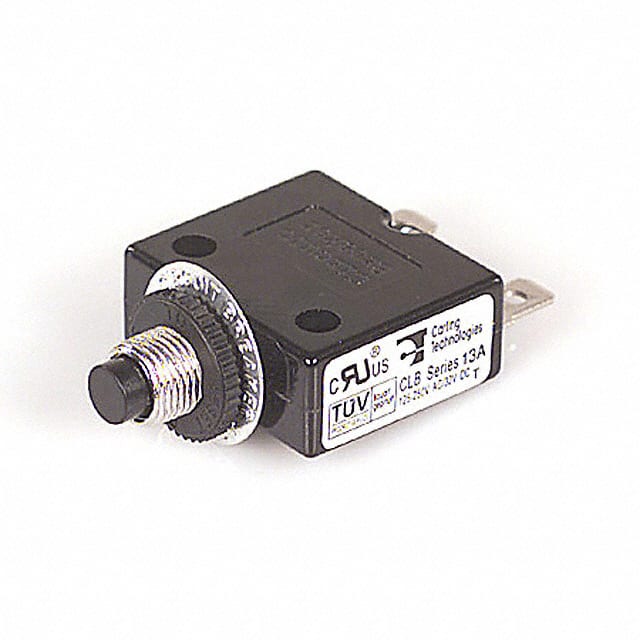

The Carling Technologies CLB-133-11B3A-B-A is a thermal circuit breaker designed for overcurrent protection. This single-pole device has a current rating of 13A and can operate at voltages up to 250VAC or 32VDC.
Featuring a quick connect termination and a panel mount design, this circuit breaker is suitable for various applications requiring reliable circuit protection. Its thermal tripping mechanism ensures protection against overloads.
The operating temperature range for this breaker is from -10°C to 60°C. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions.
The current rating is 13 A.
The voltage rating is 250 VAC and 32 VDC.
The operating temperature range is -10 °C to 60 °C.
It has 1 pole.
It uses a push-to-reset actuator.
It is panel or screw mounted.
It is approved by CE, cUL, TUV, UL1077, and UL1500.
