| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Termination | |
| Termination Style | |
| Voltage Rating |

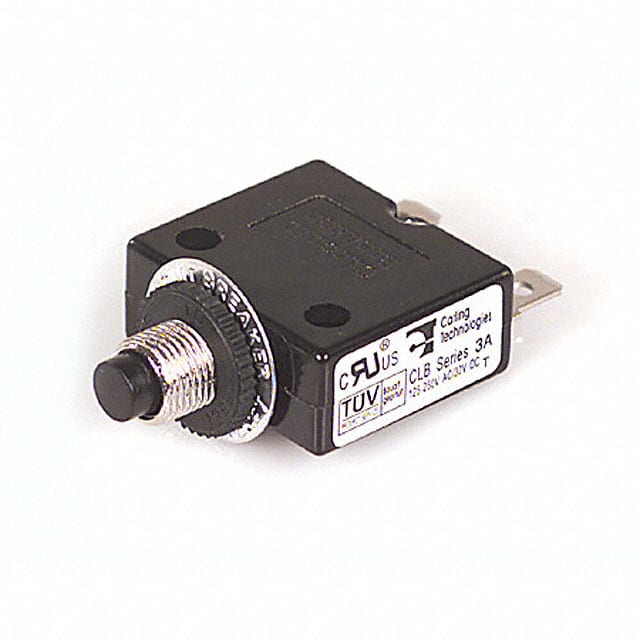

The CLB-033-11B3A-B-A is a thermal circuit breaker from Littelfuse Inc., part of the CLB-Series. This component offers a current rating of 3A and is suitable for voltages up to 250VAC and 32VDC.
Designed for robust performance, this circuit breaker features a push-to-reset actuator and a single pole configuration. It is designed for panel mounting, utilizing a 0.250 Tab (Q.C.) termination style for secure connections.
Key specifications include a thermal breaker type and non-illuminated operation. The device is recognized by UL 1077, UL 1500, TUV certified to IEC/EN 60934, CSA Certified, and cUL listed, indicating compliance with various safety standards.
3 A.
250 VAC and 32 VDC.
1 pole.
Push-to-reset.
Panel mount.
Thermal.
0.250 inch tab quick connect.
