| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination Style | |
| Type |

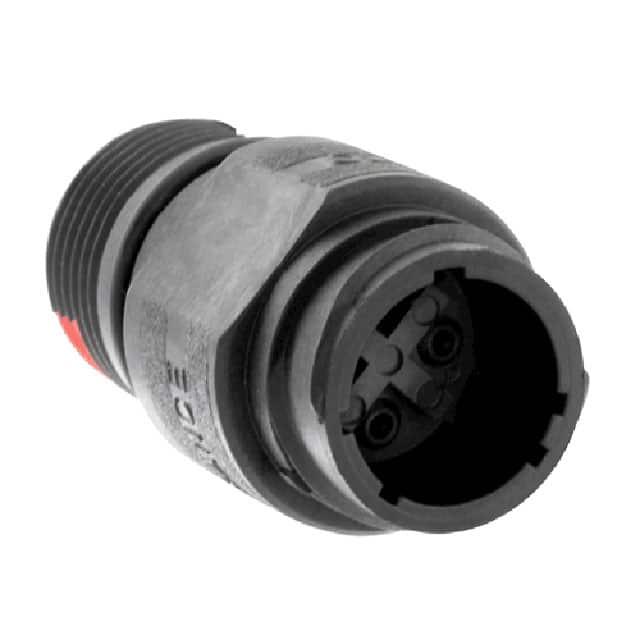

The CL1C1101 is a circular connector receptacle housing from Souriau-Sunbank by Eaton, designed for use with male pins. It accommodates 4 positions with contact size 16 and features a shell size of 1-1. The housing is constructed from a thermoplastic, halogen-free material and is black in color.
This housing is designed for free hanging (in-line) mounting and uses a twist latch fastening system for secure mating. It is keyed for proper orientation and is unshielded. The housing supports both crimp and solder cup contact termination types.
Environmental protection is provided by an IP67 rating, ensuring it is dust tight and waterproof. The material flammability rating is UL94 V-0, indicating a high level of flame resistance. The housing is also halogen free, as indicated by the shell material.
The CL1C1101 is a receptacle housing.
The CL1C1101 has 4 positions.
The mounting type is free hanging (in-line).
The ingress protection rating is IP67, meaning it is dust tight and waterproof.
The material flammability rating is UL94 V-0.
The shell material is thermoplastic, halogen free.
The fastening type is twist latch.
