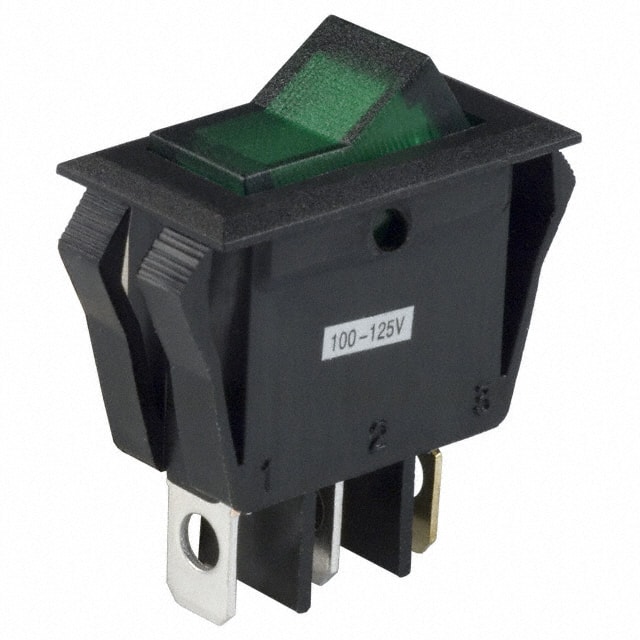

CL102J9GS205QA7 The C&K Components CL102J9GS205QA7 is an illuminated SPST On-Off rocker switch. It features a 16A 125V AC rating and snap-in panel mount.
Mfr Part #:

CL102J9GS205QA7

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components CL102J9GS205QA7 is an illuminated SPST On-Off rocker switch. It features a 16A 125V AC rating and snap-in panel mount.
✓ Total Stock: 250 pcs
$ Price Range: $0.75

CL102J9GS205QA7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CL102J9GS205QA7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Illumination Color
Illumination Type, Color
Illumination Voltage (Nominal)
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

CL102J9GS205QA7 Description

Short technical summary and product information.

The C&K Components CL102J9GS205QA7 is a single pole, single throw (SPST) rocker switch designed for On-Off functionality. It is rated for 16 Amps at 125 VAC and features a 125 VAC green neon illumination.



This switch utilizes a snap-in panel mount design for easy installation and has a termination style of 0.250" (6.3mm) quick connect. The operating temperature range is -20°C to 80°C. The actuator is a concave, illuminated type with a green color.



Typical applications for this type of switch include floor care products, power outlet strips, and HVAC units. The switch is RoHS3 compliant and has an MSL of 1.

CL102J9GS205QA7 Quick Information

Product Type: Rocker Switch
Series: CL Series
Canonical Name: C&K Components CL102J9GS205QA7 SPST On-Off Rocker Switch
Subcategory: Rocker Switch

CL102J9GS205QA7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CL102J9GS205QA7 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

CL102J9GS205QA7 Features

  • SPST On-Off rocker switch.
  • 16A 125V AC rating.
  • Snap-in panel mount.
  • Green neon illumination.
  • 0.250" quick connect termination.

CL102J9GS205QA7 Applications

  • Used in control panels and machinery
  • Suitable for on-off switching applications
  • Ideal for equipment requiring visual status indication
  • Panel mounting with rectangular cutout

CL102J9GS205QA7 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the CL102J9GS205QA7 rocker switch?

The switch has a current rating of 16A AC and 6A DC.

What is the voltage rating for the CL102J9GS205QA7?

The AC voltage rating is 125V, and the DC voltage rating is 48V.

What is the operating temperature range for this switch?

The operating temperature range is -20°C to 80°C.

How is the CL102J9GS205QA7 switch mounted?

It features a snap-in panel mount.

What type of illumination does the CL102J9GS205QA7 have?

It has green neon illumination operating at 125 VAC.
