| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Memory Type | |
| Military Grade | |
| Mounting Type | |
| Power Consumption | |
| Storage Temperature | |
| Tape & Reel |

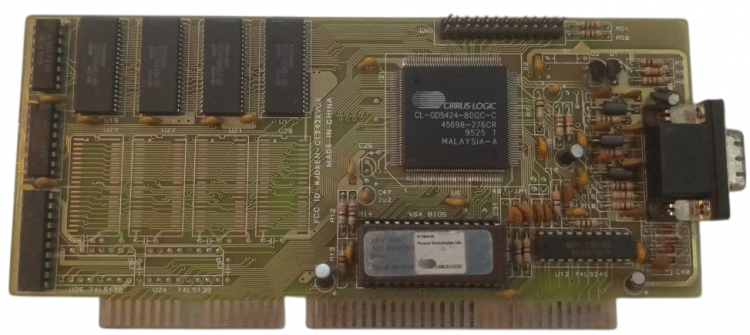

The Cirrus Logic CL-GD5424-80QC-C is a video card designed for older computer systems, featuring an ISA 16-bit or VESA Local Bus (VLB) interface. It is equipped with 512KB of FPM DRAM and operates at a core clock speed of 80 MHz, with an effective memory clock speed of 50 MHz.
This video card includes an integrated 24-bit RAMDAC, supporting True Color modes with up to 16.8 million colors. It offers compatibility with IBM VGA and VESA standards. The typical power consumption is around 1.5W.
Supported resolutions with 512KB of memory include 640x480 at 256 colors, 640x400 at 64K colors, 800x600 at up to 16 colors, and 1024x768 at up to 4 colors (or 16 in some implementations). The chip specification, indicated by -80QC-C, denotes an 80 MHz speed and a QFP-160 package type. The card is designed for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core clock speed is 80 MHz.
It has 512 KB of FPM DRAM video memory.
The memory type is FPM DRAM.
The memory bus width is 32-bit.
The effective memory clock speed is 50 MHz.
The RAMDAC resolution is 24-bit, supporting True Color.
The typical power consumption is around 1.5 W.
It supports ISA 16-bit or VESA Local Bus (VLB).
Supported resolutions include 640x480 at 256 colors, 640x400 at 64K colors, 800x600 at up to 16 colors, and 1024x768 at up to 4 colors.
