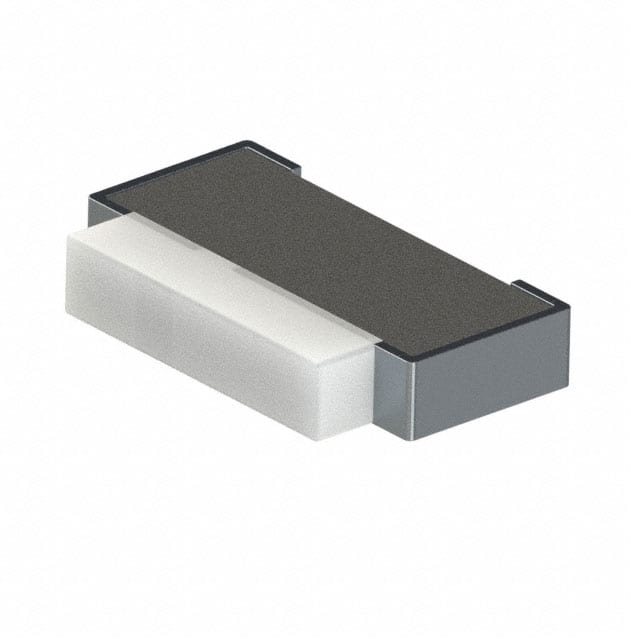

CL-482T-WS-SD-TS The Citizen Finedevice CL-482T-WS-SD-TS is a white SMD LED with a forward voltage of 2.9V and a luminous intensity of 115mcd. It is designed for surface mounting with a right-angle orientation.
Mfr Part #:

CL-482T-WS-SD-TS

Available from 1 distributors
Mfr Name: Citizen Finedevice
Citizen Finedevice
The Citizen Finedevice CL-482T-WS-SD-TS is a white SMD LED with a forward voltage of 2.9V and a luminous intensity of 115mcd. It is designed for surface mounting with a right-angle orientation.
✓ Total Stock: 23,623 pcs
$ Price Range: $0.08

CL-482T-WS-SD-TS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
23,623 pcs
On Request
23623 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CL-482T-WS-SD-TS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lead Style
Lens Size
Lens Style
Millicandela Rating
Mounting Type
Tape & Reel
Voltage
View Similar Products (0)

CL-482T-WS-SD-TS Description

Short technical summary and product information.

This Citizen Finedevice CL-482T-WS-SD-TS is a white surface-mount device (SMD) LED, suitable for various indication applications. It operates with a typical forward voltage of 2.9V and a forward current of 5mA, providing a luminous intensity of 115mcd.



The LED features a compact size of 1.80mm L x 1.00mm W and a maximum height of 0.30mm, with a lens measuring 1.80mm x 0.30mm. Its package is a 2-SMD, No Lead type, designed for surface mounting with a right-angle orientation. The lens style is rectangular with a flat top.



This component is part of the LED Indication - Discrete category and belongs to the CL-482T series. It is manufactured by Citizen Finedevice and is RoHS3 compliant. The MSL rating is 1, indicating unlimited usability under standard conditions.

CL-482T-WS-SD-TS Quick Information

Product Type: SMD LED
Series: CL-482T
Canonical Name: Citizen Finedevice CL-482T-WS-SD-TS White SMD LED
Subcategory: SMD LED

CL-482T-WS-SD-TS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CL-482T-WS-SD-TS Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

CL-482T-WS-SD-TS Features

  • White SMD LED for indication.
  • 2.9V typical forward voltage.
  • 115mcd luminous intensity.
  • Surface mount, right angle package.
  • Compact dimensions: 1.80mm x 1.00mm.

CL-482T-WS-SD-TS Applications

  • Ideal for status indicators.
  • Suitable for compact electronic devices.
  • Used in consumer electronics.
  • Applicable in industrial controls.

CL-482T-WS-SD-TS FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the CL-482T-WS-SD-TS LED?

The typical forward voltage for the CL-482T-WS-SD-TS LED is 2.9V at 5mA.

What is the luminous intensity of this white LED?

The luminous intensity of the CL-482T-WS-SD-TS LED is 115mcd.

What type of package does the CL-482T-WS-SD-TS use?

The CL-482T-WS-SD-TS uses a 2-SMD, No Lead package.

How is the CL-482T-WS-SD-TS LED mounted?

The CL-482T-WS-SD-TS LED is designed for surface mounting with a right-angle orientation.

What are the dimensions of the CL-482T-WS-SD-TS LED?

The dimensions of the CL-482T-WS-SD-TS LED are 1.80mm in length and 1.00mm in width, with a maximum height of 0.30mm.
