| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
270 pcs
|
270 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Frequency | |
| Linearity | |
| Number of Channels | |
| Package Quantity | |
| Response Time | |
| Sensitivity | |
| Supply Current |

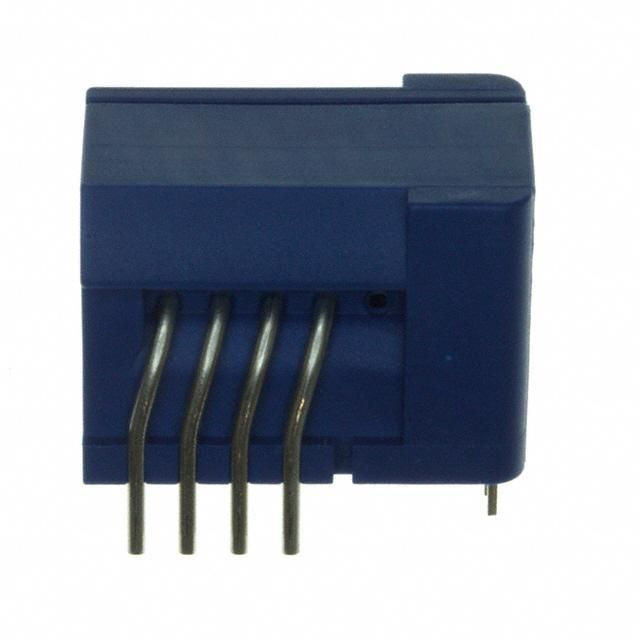

The LEM CKSR6-NP is a specialized current sensor module designed for accurate current measurement in various applications. It features a current sensing range of 6A and a wide frequency response up to 300kHz, making it suitable for dynamic current monitoring.
With an accuracy of 0.8% and linearity of 1%, the CKSR6-NP provides reliable and precise readings. It operates within a supply voltage range of 4.75V to 5.25V with a maximum supply current of 20mA. The sensor has a fast response time of 0.3µs.
This current sensor is available in a module package and supports both through-hole and PCB mounting, offering flexibility in integration. It operates across a wide temperature range from -40°C to 105°C, ensuring performance in diverse environmental conditions.
The LEM CKSR6-NP is RoHS compliant, indicating adherence to environmental standards for electronic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current sensing range is 6A.
The frequency response is 300kHz.
The accuracy is 0.8%.
The operating temperature range is -40°C to 105°C.
It operates on a supply voltage of 5.25V.
