| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,112 pcs
|
8112 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| For Measuring | |
| Frequency | |
| Linearity | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Polarization | |
| Response Time | |
| Sensitivity | |
| Sensor Type | |
| Voltage |

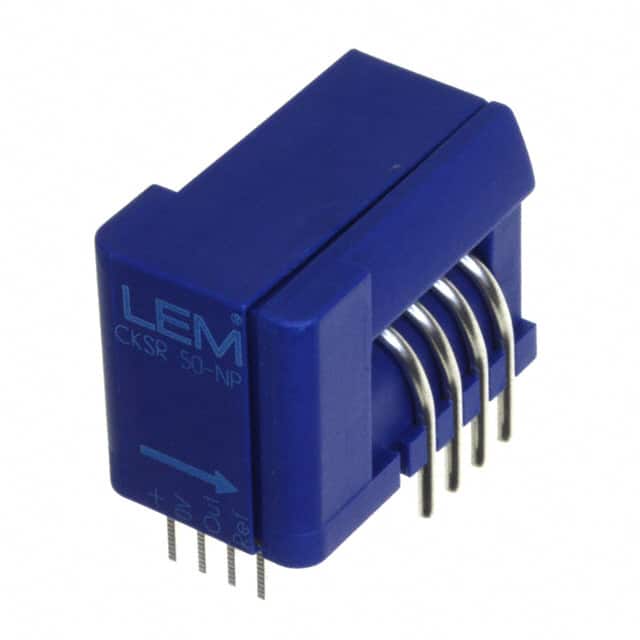

The LEM USA Inc. CKSR 50-NP is a high-performance current sensor utilizing flux gate technology in a closed-loop configuration. It is designed to accurately measure both AC and DC currents up to a rating of 50A. This sensor operates within a voltage range of 4.75V to 5.25V and features a sensitivity of 12.5mV/A with an impressive accuracy of ±0.8% and linearity of ±1%.
With a wide operating temperature range of -40°C to 105°C and a fast response time of 0.3µs, the CKSR 50-NP is suitable for demanding applications. Its frequency response extends up to 300kHz, making it versatile for various signal processing needs. The sensor is housed in a module package and features a through-hole mounting type for easy integration into circuit boards.
This bidirectional sensor provides a ratiometric voltage output and is designed for measuring AC/DC currents. It operates with a single channel and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 105°C.
The sensor is rated for 50A.
It provides a ratiometric voltage output.
The accuracy is ±0.8%.
The response time is 0.3µs.
