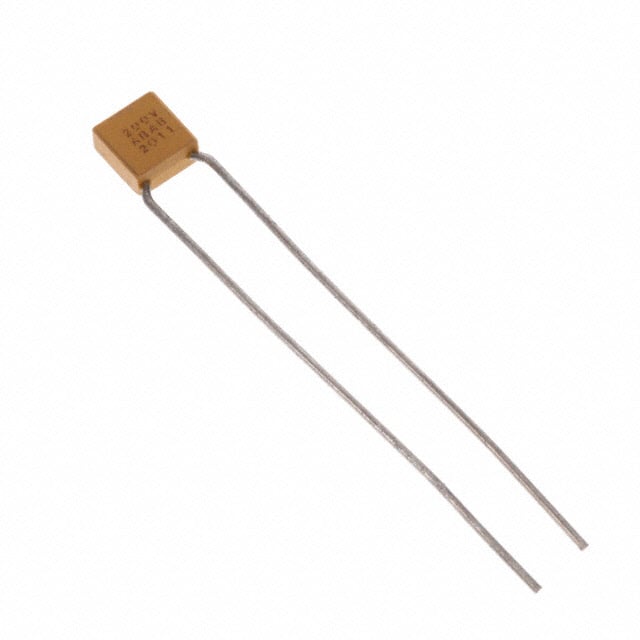

CKR05BX470MS CKR05BX470MS is a 47 pF, ±20%, 50V radial ceramic capacitor with BX dielectric from Kyocera AVX. It is designed for through-hole mounting and operates from -55°C to +125°C.
Mfr Part #:

CKR05BX470MS

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
CKR05BX470MS is a 47 pF, ±20%, 50V radial ceramic capacitor with BX dielectric from Kyocera AVX. It is designed for through-hole mounting and operates from -55°C to +125°C.
✓ Total Stock: 138 pcs

CKR05BX470MS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
138 pcs
On Request
138 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CKR05BX470MS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Mounting Type
Operating Temperature Range
Package / Case
Termination Style
Tolerance
Voltage Rating
View Similar Products (0)

CKR05BX470MS Description

Short technical summary and product information.

The CKR05BX470MS is a ceramic capacitor manufactured by Kyocera AVX, part of the CKR05 series compliant with MIL-PRF-39014. It offers a capacitance of 47 pF with a tolerance of ±20% and a voltage rating of 50 V DC.



This capacitor features a BX dielectric, which provides stable capacitance over a wide temperature range (-55°C to +125°C), equivalent to X7R characteristics. It is housed in a radial leaded through-hole package, making it suitable for high-reliability applications that require robust mechanical mounting.



The part number suffix 'MS' indicates a ±20% tolerance and hermetically sealed construction. It is designed for use in military, aerospace, and industrial electronic systems where consistent performance under harsh environments is critical.

CKR05BX470MS Quick Information

Product Type: Ceramic Capacitor
Canonical Name: CKR05BX470MS Ceramic Capacitor, 47 pF, ±20%, 50V, BX Dielectric, Radial
Subcategory: Radial Leaded Ceramic Capacitor

CKR05BX470MS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CKR05BX470MS Features

  • 47 pF capacitance with ±20% tolerance.
  • 50V DC voltage rating.
  • BX dielectric for stable performance.
  • Radial through-hole mounting package.
  • Operating temperature range -55°C to +125°C.

CKR05BX470MS Applications

  • For decoupling and bypass circuits.
  • Ideal for timing and filter applications.
  • Suitable for military and aerospace electronics.

CKR05BX470MS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of CKR05BX470MS?

47 pF.

What is the tolerance?

±20%.

What is the voltage rating?

50 V DC.

What dielectric type does this capacitor use?

BX dielectric.

What is the operating temperature range?

-55°C to +125°C.

What is the mounting type?

Through hole (radial leaded).

Is CKR05BX470MS RoHS compliant?

Yes, it is listed as RoHS3 Compliant.
