| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
259 pcs
|
259 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Features | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |
The CKG45NX7S2A106M500JH is a surface-mount multilayer ceramic capacitor (MLCC) from TDK Corporation. It offers a capacitance of 10 µF with a rated voltage of 100V and a tolerance of ±20%.
This capacitor uses the X7S temperature coefficient, providing stable performance over a wide operating temperature range of -55°C to 125°C. It features a low ESL (stacked) design, making it suitable for high-frequency applications.

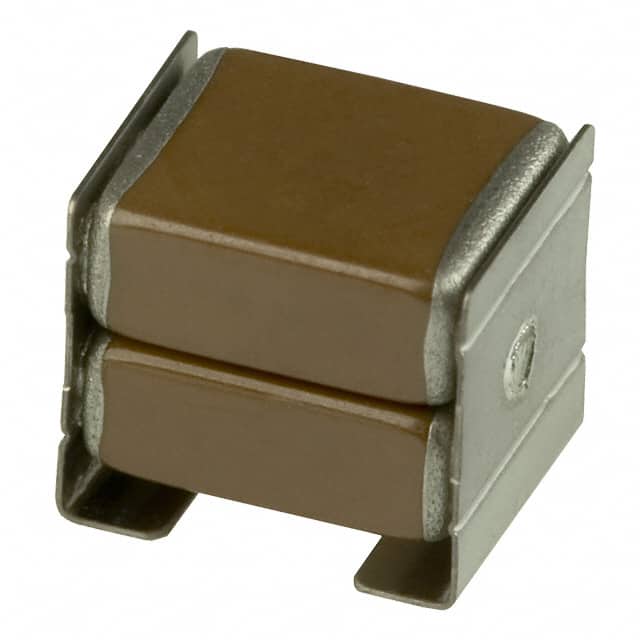

The component is housed in a stacked SMD package with 2 J-Leads, measuring 5.00mm in length, 3.50mm in width, and 5.50mm maximum thickness. It is designed for surface mount assembly and is RoHS3 and REACH compliant.
Typical applications include SMPS filtering, bypass, and decoupling in power supply circuits. The low ESL characteristic helps reduce noise in high-speed switching environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.25 | $4.25 |
| 10+ | $2.84 | $2.84 |
| 50+ | $2.27 | $2.27 |
| 100+ | $2.09 | $2.09 |
| 500+ | $1.78 | $1.78 |
| 1,000+ | $1.72 | $1.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µF.
100V.
X7S.
±20%.
Stacked SMD, 2 J-Lead.
-55°C to 125°C.
Surface Mount, MLCC.
