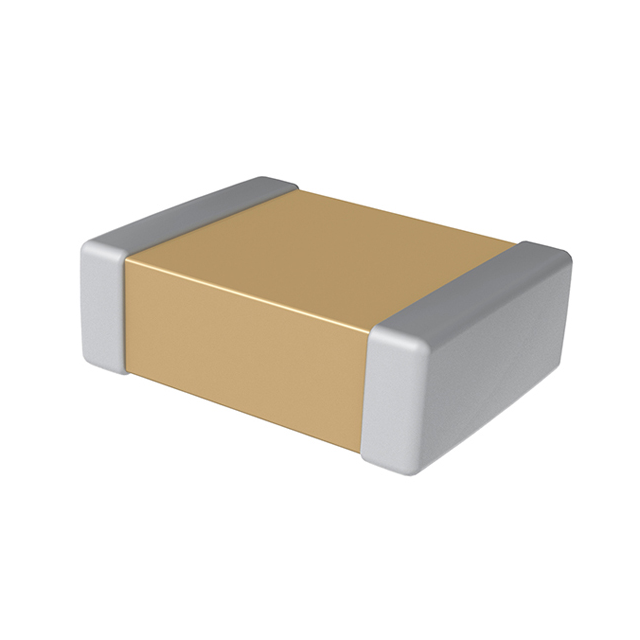

CKC21X682JJGACAUTO KEMET CKC21X682JJGACAUTO is an automotive-grade MLCC capacitor with 6800 pF capacitance, ±5% tolerance, and 1700 VDC rating in a 2220 package.
Mfr Part #:

CKC21X682JJGACAUTO

Available from 1 distributors
Mfr Name: Yageo
Yageo
KEMET CKC21X682JJGACAUTO is an automotive-grade MLCC capacitor with 6800 pF capacitance, ±5% tolerance, and 1700 VDC rating in a 2220 package.
✓ Total Stock: 5 pcs

CKC21X682JJGACAUTO Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CKC21X682JJGACAUTO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Capacitance
Dielectric Withstanding Voltage
Dissipation Factor
Features
Industrial Grade
Insulation Resistance
Length
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Package / Case
Ratings
SVHC Present
Shelf Life
Tape & Reel
Temperature Coefficient
Termination
Thickness
Thickness (Max)
Tolerance
Voltage
Weight
Width
View Similar Products (0)

CKC21X682JJGACAUTO Description

Short technical summary and product information.

The KEMET CKC21X682JJGACAUTO is a surface-mount multilayer ceramic capacitor (MLCC) from the KC-LINK Auto C0G series. It offers a capacitance of 6800 pF with a ±5% tolerance and a rated DC voltage of 1700 V. The component features a C0G (NP0) temperature coefficient, providing a capacitance change of only 30 ppm/°C, and operates over a temperature range of -55°C to +150°C.



This capacitor is designed for high-voltage and high-temperature automotive applications. It includes flexible termination (FT-CAP) to mitigate board flexure stress and is qualified to AEC-Q200. The dissipation factor is 0.1% at 1 kHz, and insulation resistance is 100 GΩ. The aging rate is 0% loss per decade hour, ensuring long-term stability.



The component is housed in a 2220 (5750 Metric) case size with dimensions of 5.9 mm length and 5.0 mm width. It is supplied in tape and reel packaging with a standard quantity of 500 pieces per reel.

CKC21X682JJGACAUTO Quick Information

Product Type: MLCC Capacitor
Series: CKC
Canonical Name: KEMET CKC21X682JJGACAUTO KC-LINK Auto C0G MLCC Capacitor, 6800 pF, 1700 VDC, ±5%, 2220 Package
Subcategory: High Voltage C0G

CKC21X682JJGACAUTO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

CKC21X682JJGACAUTO Features

  • 6800 pF capacitance with ±5% tolerance.
  • Rated for 1700 VDC operation.
  • C0G (NP0) temperature coefficient for stability.
  • AEC-Q200 automotive qualified.
  • Flexible termination for board flex resistance.

CKC21X682JJGACAUTO Applications

  • Automotive engine control modules.
  • High-voltage DC-DC converter circuits.
  • Board-flex sensitive PCB assemblies.
  • High-temperature under-hood electronics.

CKC21X682JJGACAUTO FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance and tolerance of the CKC21X682JJGACAUTO?

The capacitance is 6800 pF with a tolerance of ±5%.

What is the rated voltage of this capacitor?

The rated DC voltage is 1700 V.

What is the temperature coefficient of the CKC21X682JJGACAUTO?

The temperature coefficient is C0G (NP0), with a capacitance change of 30 ppm/°C.

What is the operating temperature range?

The operating temperature range is -55°C to +150°C.

What is the package size of this MLCC?

The package size is 2220 (5750 Metric).

Is this capacitor AEC-Q200 qualified?

Yes, it is AEC-Q200 qualified for automotive applications.

What is the packaging quantity for the CKC21X682JJGACAUTO?

It is supplied in tape and reel packaging with a standard quantity of 500 pieces.
