| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Withstanding Voltage | |
| Dissipation Factor | |
| Failure Rate | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Prop 65 | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Width |

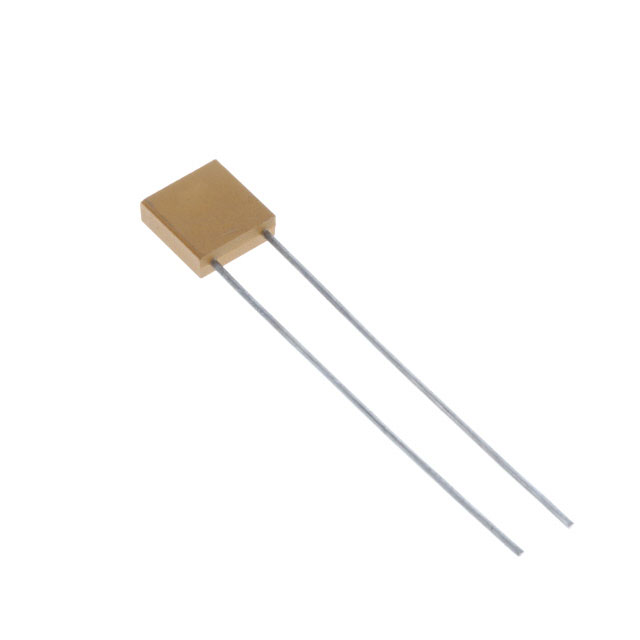

The CK06BX222K is a radial leaded ceramic capacitor from Kyocera AVX, part of the LDD Mil X7R C11015 series. It offers a capacitance of 2200 pF with ±10% tolerance and a rated voltage of 200 VDC. The BX temperature coefficient ensures stable performance over the operating temperature range of -55°C to +125°C.
Electrically, the capacitor features a dielectric withstanding voltage of 500 VDC, dissipation factor of 2.5%, and insulation resistance of 100 GOhms. The component is qualified to MIL-PRF-11015 and uses SnPb terminal finish.
Mechanically, the part is supplied in a radial package with straight leads, lead spacing of 5.08 mm, and minimum lead length of 31.75 mm. Body dimensions are 7.37 mm length, 7.37 mm height, and 2.29 mm thickness. Packaging is bulk bag with a standard quantity of 100 pieces.
The capacitance is 2200 pF with a tolerance of ±10%.
The rated voltage is 200 VDC, with a dielectric withstanding voltage of 500 VDC.
The temperature coefficient is BX, with an operating temperature range of -55°C to +125°C.
The package is radial leaded, through-hole mounting, with straight leads and 5.08 mm lead spacing.
Yes, it is qualified to MIL-PRF-11015.
The dissipation factor is 2.5%.
