| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

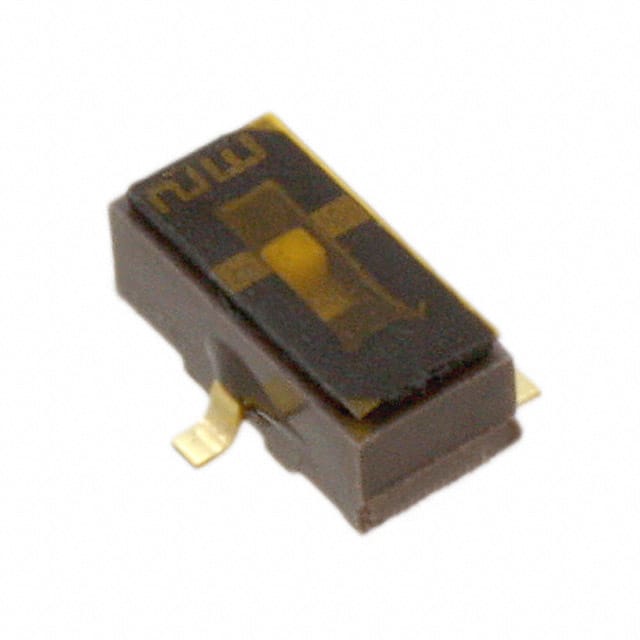

The Nidec CJS-1200TB is a surface mount slide switch designed for compact applications. It features an SPDT (Single Pole Double Throw) circuit with a 6V voltage rating and a 100mA current rating.
The switch is compatible with most automatic pick & place machinery, making it suitable for high-volume manufacturing. The resin material is UL Recognized 94V-0, and it is RoHS compliant.
Key specifications include an operating temperature range of -40°C to 85°C, a contact resistance of 100 mΩ maximum, and a gold-plated copper alloy contact material. The termination style is Gull Wing, and it is supplied in tape and reel packaging.
This switch is ideal for applications requiring a reliable, space-saving switching solution where automated assembly processes are employed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The switch is rated for 6V and 100mA.
It has an SPDT (Single Pole Double Throw) circuit.
The CJS-1200TB is a surface mount device.
The contact resistance is a maximum of 100 mΩ.
Yes, the CJS-1200TB is RoHS compliant.
