| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

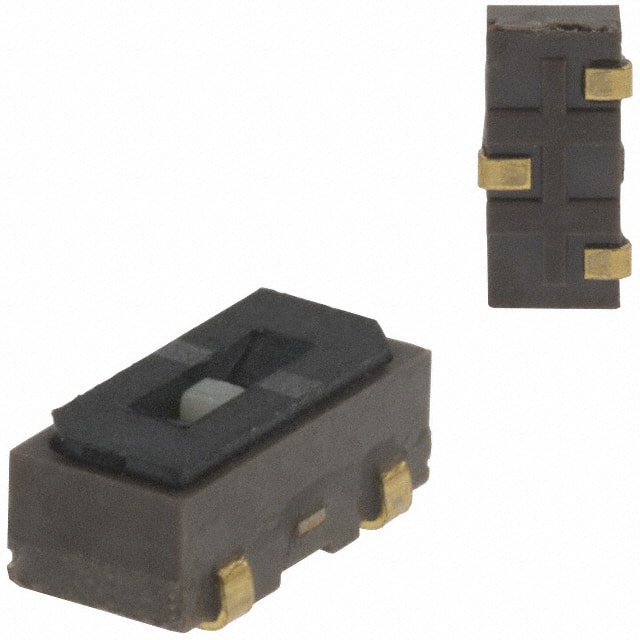

This Nidec CJS-1200TA is a compact, space-saving SMD slide switch featuring a tape seal for protection. It is designed for surface mount applications and offers a SPDT (Single Pole Double Throw) circuit configuration.
The switch operates within a temperature range of -40°C to 85°C and has a voltage rating of 6V, with a current rating of 100mA. The contact material is a copper alloy with gold plating, ensuring reliable performance. The termination style is J Lead, compatible with automatic pick and place machinery.
Key features include easy slider setting with line marking and compatibility with most automatic pick & place machinery. The resin material used is UL Recognized 94V-0, contributing to its durability and safety. This RoHS compliant switch is suitable for various electronic control applications where space is a constraint.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The switch is rated for 6V and 100mA.
It uses J Lead termination.
It is packaged in Taping (Reel) with 1000 pieces per reel.
