| Category | |
| Manufacturer Name | |
| Adjustment Range | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

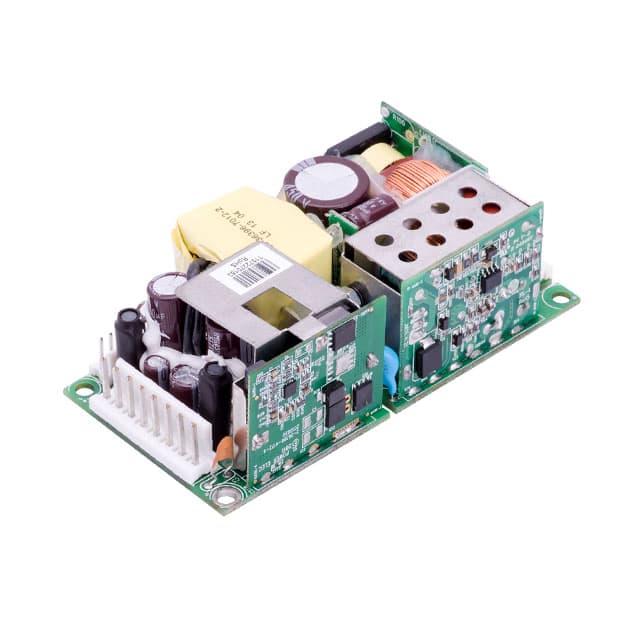

The SL Power Electronics CINT3110A1908K01 is an open-frame AC/DC converter designed for industrial applications. It delivers a total power of 110 Watts with forced air cooling, or 80 Watts convection cooled.
This converter operates with a universal input voltage range of 90 to 264 VAC and features three outputs. Key electrical specifications include an efficiency of 87% typical at 230 VAC, and various protection features such as overvoltage, short circuit, and overload protection.
The CINT3110A1908K01 has a compact size of 4.00" L x 2.00" W x 1.30" H, making it suitable for 1U applications. It is designed for chassis mounting and operates within a temperature range of -10°C to +70°C, with derating applied above +50°C.
Compliance includes EN55011/22 Class B conducted emissions and Class A radiated emissions. It also features auxiliary signals like Power Fail and DC OK, and is RoHS3 compliant.
The converter provides 5V and +/-24V outputs.
80W convection cooled, 110W with 200 LFM forced airflow.
90 to 264 VAC, 47 to 63 Hz, or 120 to 370 VDC.
-10°C to +70°C with derating.
Overvoltage protection (latch), short circuit protection (hiccup), and overload protection (hiccup).
4000 VAC.
87% typical.
