| Category | |
| Manufacturer Name | |
| Adjustment Range | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Turn On Time | |
| Type | |
| Voltage |

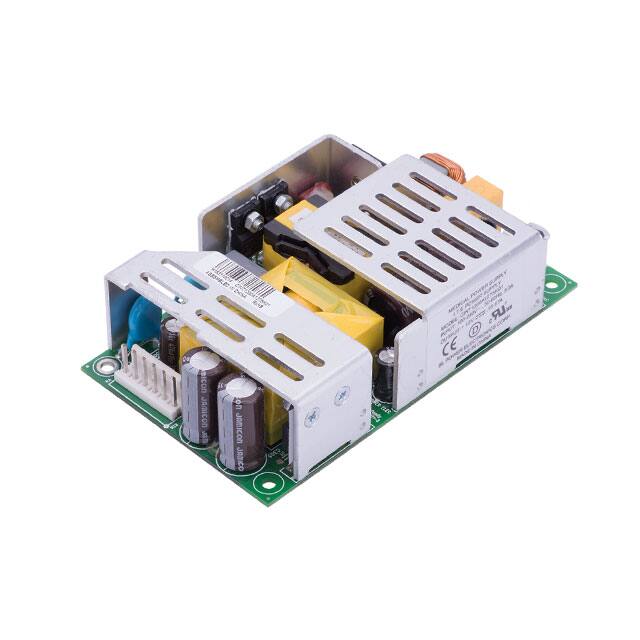

The SL Power Electronics CINT1200A2475K01 is an industrial-grade, open-frame AC/DC power supply from the CINT1200 series. It features a high-density design suitable for various applications.
This converter operates with a universal input voltage range of 90 to 264 VAC, delivering up to 200W with forced airflow or 180W when convection cooled. It boasts a typical efficiency of 88% and a wide operating temperature range from -10°C to +70°C, providing full rated output power up to +50°C.
The CINT1200A2475K01 is designed for ITE (Commercial) applications and includes features such as DC input capability and universal input. It meets stringent safety standards, including EN/CSA/IEC/UL62368-1.
Key electrical specifications include a power factor greater than 0.9, a switching frequency of 65 kHz for PFC, and variable main converter frequencies. It offers robust protection features like overvoltage, short circuit, and thermal protection. The unit is compliant with Class B conducted emissions standards.
The input voltage range is 90 to 264 VAC (47 to 63 Hz) or 127 to 370 VDC.
The output voltage is 24V and the power rating is 180W convection cooled, or 200W with 100 LFM forced airflow.
The operating temperature range is -10°C to 70°C.
It includes overvoltage protection in latch mode, short circuit protection with hiccup mode and auto recovery, thermal protection at 165°C with latching mode, and overload protection at 120 to 150% of rating in hiccup mode.
The typical efficiency is 88%.
The isolation voltage between input and output is 4000 VAC.
The warranty period is 3 years.
