| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

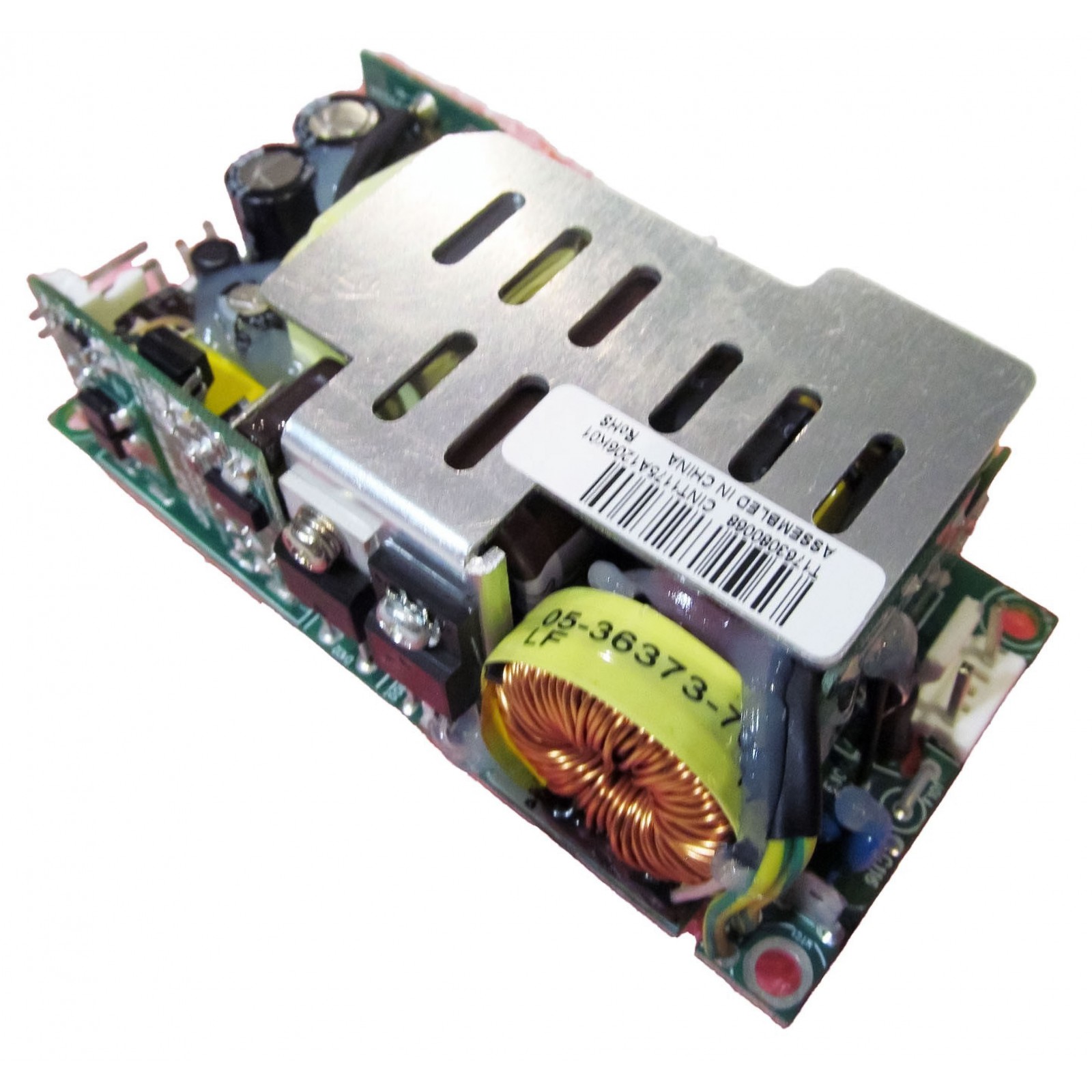

This SL Power Electronics CINT1175A1206K01 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a 12V output with a maximum current of 14.60A, delivering up to 120W of power, or 175W with forced air.
The converter accepts a universal input voltage range of 100-240 VAC at 50-60Hz. Key features include adjustable output, DC input capability, a standby output, and an isolation voltage of 4 kV. Its dimensions are 101.6mm x 50.8mm x 33.0mm, making it suitable for chassis mounting.
Operating temperature ranges from -10°C to 70°C with derating. The unit boasts 90% efficiency and is RoHS3 compliant, with an MSL rating of 1. This power supply is a reliable choice for various commercial electronic equipment.
The input voltage range is 100-240 VAC.
The output is +12V with a maximum current of 14.6A.
It is rated at 120W under natural convection and 175W with forced air cooling.
The efficiency is 90%.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 101.6mm x 50.8mm x 33.0mm and it is designed for chassis mount.
Yes, it features a standby output along with adjustable output, DC input capability, and universal input.
