| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Product Type | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

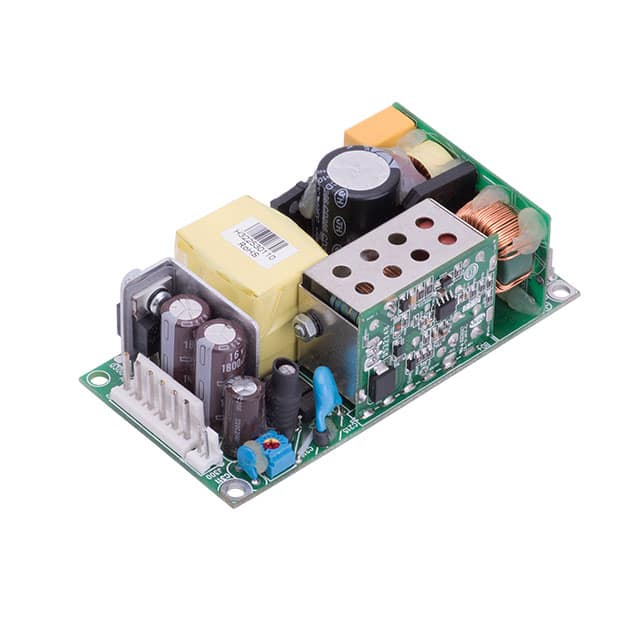

The SL Power CINT1150A2406K01 is a switching power supply designed for commercial applications. It operates with an input voltage range of 90 VAC to 264 VAC and provides a single output of 24 VDC at 4.17 A, delivering up to 150W of power. This open-frame unit is designed for chassis mounting.
Key specifications include an efficiency of 88% and features such as adjustable output, DC input capability, power factor correction (PFC), and universal input. The operating temperature range is -10°C to 70°C with derating. The power supply has an isolation voltage of 4 kV and meets approvals including CE, EN60950-1, and UL60950-1.
Dimensions are 4.00 inches in length, 1.75 inches in width, and 1.30 inches in height. It is part of the Cint series and is RoHS3 compliant with an MSL of 1.
90 VAC to 264 VAC.
Chassis mount, open frame.
-10°C to 70°C with derating.
150W (100W convection, 150W forced air).
4.17 A at 24 VDC.
88%.
EN60950-1 and UL60950-1.
