| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
845 pcs
|
845 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Features | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

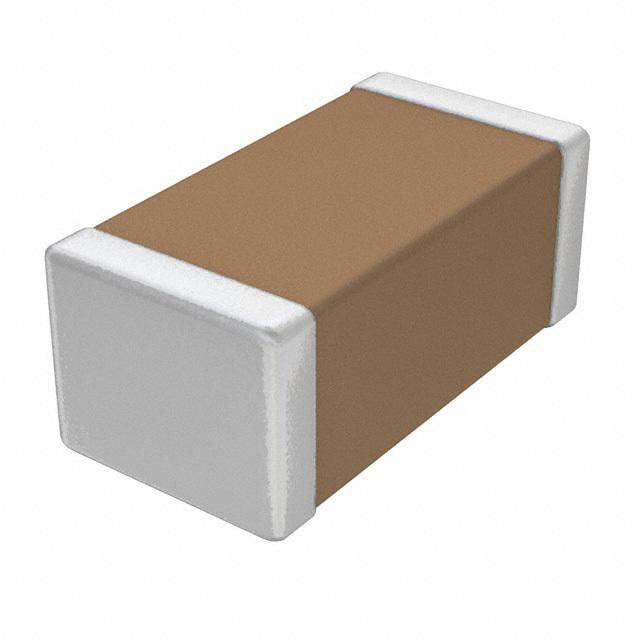

The CHV2225N1K0104KXT is a surface mount multilayer ceramic capacitor (MLCC) from Cal-Chip Electronics, designed for high voltage applications. It offers a capacitance of 0.1 µF with a rated voltage of 1000V (1kV) and a tolerance of ±10%. The X7R temperature coefficient ensures stable performance over an operating temperature range of -55°C to 125°C.
The capacitor is housed in a 2225 (5763 Metric) package with dimensions of 5.70mm length, 6.35mm width, and 3.00mm maximum thickness. It is intended for general purpose use and is RoHS compliant (unverified). The high voltage rating makes it suitable for power supply decoupling, filtering, and snubber circuits in industrial and consumer electronics.
This component is available in tape and reel packaging for automated assembly. No datasheet is currently linked, and lead time information is not available. The manufacturer page requires verification as the fetched URL pointed to an unrelated social media site.
The capacitance is 0.1 µF.
The rated voltage is 1000V (1kV).
The temperature coefficient is X7R.
The tolerance is ±10%.
The package is 2225 (5763 Metric).
The operating temperature range is -55°C to 125°C.
The mounting type is Surface Mount, MLCC.
